Product Info

Description

The Aqara Wireless Remote Switch H1 (Double Rocker) is a versatile and user-friendly addition to your smart home setup. With its sleek design and wireless functionality, it offers effortless control over your Aqara Zigbee 3.0 devices, even during internet outages.

This compact switch supports two modes: High-Speed Click Mode for rapid response and Multi-Function Mode for up to seven customisable actions, including single, double, and long presses on either button, as well as simultaneous presses.

Installation is hassle-free—place it on a flat surface, mount it with the included adhesive, or install it in a standard 86×86 mm wall box. Powered by a long-lasting CR2450 battery, it boasts a five-year lifespan, making it both eco-friendly and cost-effective. .

Compatible with Aqara Home, Apple HomeKit, and IFTTT, this switch seamlessly integrates into your existing smart home ecosystem. Enhance your home's intelligence and convenience with the Aqara Wireless Remote Switch H1 (Double Rocker).

Key Features

• Zigbee 3.0 Protocol*: Experience faster, more stable, and energy-efficient performance with the latest Zigbee standard—offering improved compatibility, enhanced features, and long-term support.
• Smart Automation Ready: Works seamlessly with Aqara Home and Apple HomeKit to trigger automations, switch between scenes, and adapt functions based on time of day or other conditions.
• Exceptional Battery Life: Enjoy up to five years of battery life—the longest of any Aqara wireless switch.
• High-Speed Click Mode: Reduces response time to as low as 50 ms for ultra-fast control (note: double and long press functions are disabled in this mode).
• Multiple Configurable Actions: Supports single press, double press, long press, and simultaneous button actions to suit your smart home needs.
• Flexible Installation Options: Place it on any flat surface, stick it using the included adhesive pad, or screw it into a standard wall box—your choice.
• Premium Build Quality: Features the same elegant design as the flagship Wall Switch H1 EU for a consistent and high-end look.
• 2-Way Control Support: Pair with the Wall Switch H1 EU to control the same lights from multiple locations—no extra wiring required.

Note:
* A compatible Aqara Zigbee 3.0 hub (e.g. Hub M1S, Hub M2, or Camera Hub G2H) is required.

Specifications

Model	WRS-R02
Colour	White
Wireless Protocols	Zigbee 3.0 IEEE 802.15.4
Dimensions	85.8 x 86 x 12.5 mm
Operating Temperature	-10°C~+50°C
Operating Humidity	0 ~ 95% RH, no condensation
Battery Type:	CR2450

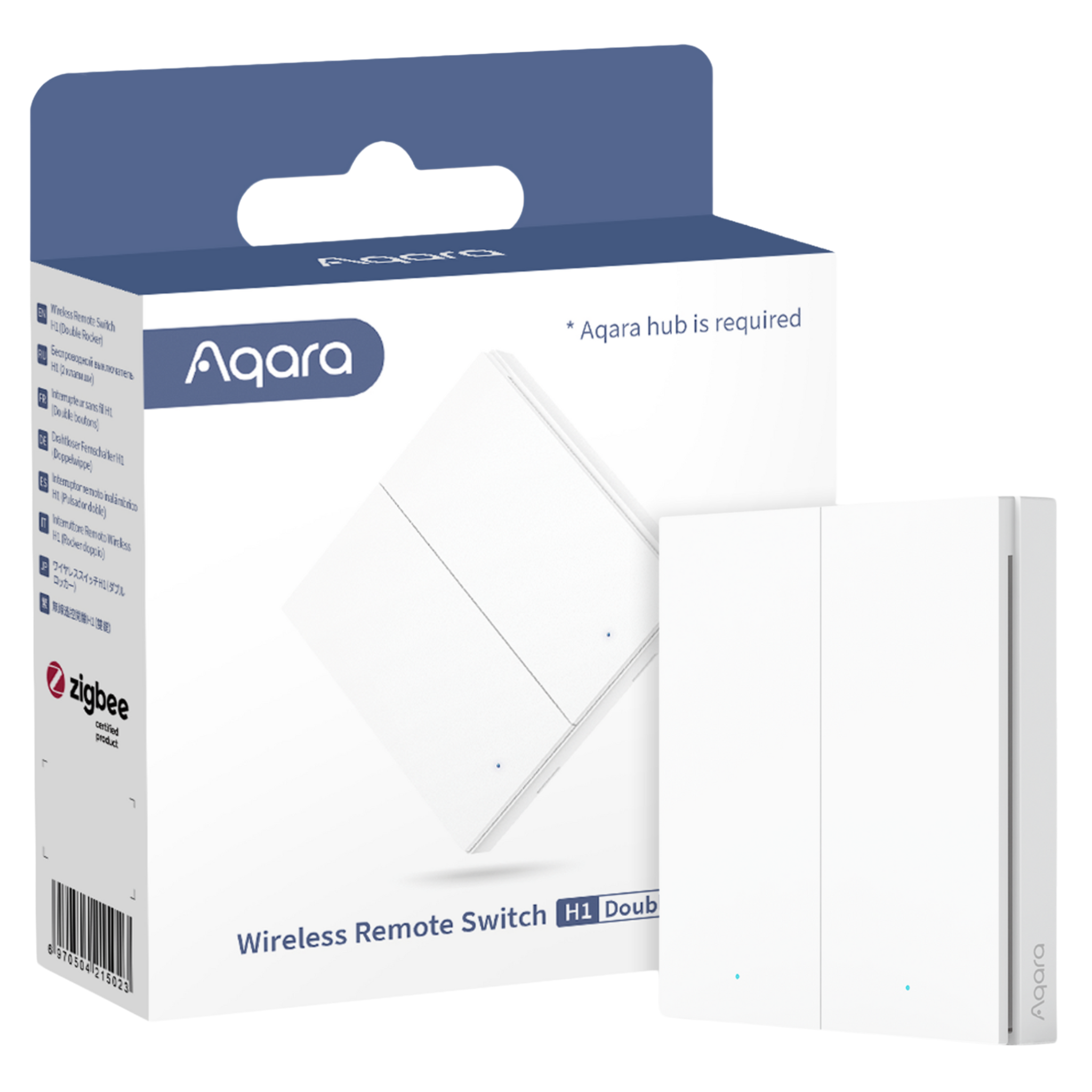

What's in the Box	Wireless Remote Switch H1 (Double Rocker) x1, Sticker x1, Insulation Tab x1, User Manual x1

Automations and Complementary Products

Click a product image to go to its page details

Scene" Morning Light Boost

Start your day the smart way. A single press on the left rocker instantly turns on your bedroom lights to full brightness—wake up refreshed without fumbling for your phone.

Automation Setup

IF (Condition): Left rocker single press // THEN (Action): Turn on LED Bulb T1 at 100% brightness // Execution Rule: Execute instantly

Scene: Movie Mode Magic

Transform your living room into a cinema with a double press on the right rocker. Lights dim, LED strip glows subtly, and your smart blinds close—instant ambience with a tap.

Automation Setup

IF (Condition): Right rocker double press // THEN (Action): Dim LED Strip Lights T1 to 20% AND Lower smart blinds AND Turn on TV // Execution Rule: Execute immediately

Scene: Goodnight Routine

End your day with ease. Simultaneously pressing both rockers turns off all lights, closes blinds, and triggers night mode on your devices—everything ready for a restful night.

Automation Setup

IF (Condition): Both rockers pressed simultaneously // THEN (Action): Turn off all lights AND Close smart blinds AND Activate night mode // Execution Rule: Execute instantly

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:03:50)
• Product User Manual:
  User Manual (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
