Product Info

Description

The Aqara U100 deadbolt smart lock provides a wealth of unlocking methods tailored to the individual habits and various scenarios of users, including Apple Home and Home Key, fingerprints, and keypad unlocking, while still maintaining customer security with its BHMA certification.

The U100 also comes with an automatic lock and passage mode that smartly adapts to your usage patterns. Its design is both simple and elegant, making it suitable for a variety of decor styles, and it also provides an emergency unlocking solution for added peace of mind. Furthermore, the U100 is compatible with third-party ecosystems like Google Home and Alexa.

With a battery life of up to 8 months and an IP65 waterproof rating, the U100 not only meets various requirements for lock security and unlocking methods, but also innovatively integrates with other smart home devices. This truly allows your smart home to synchronize unlocking with the U100.

Key Features

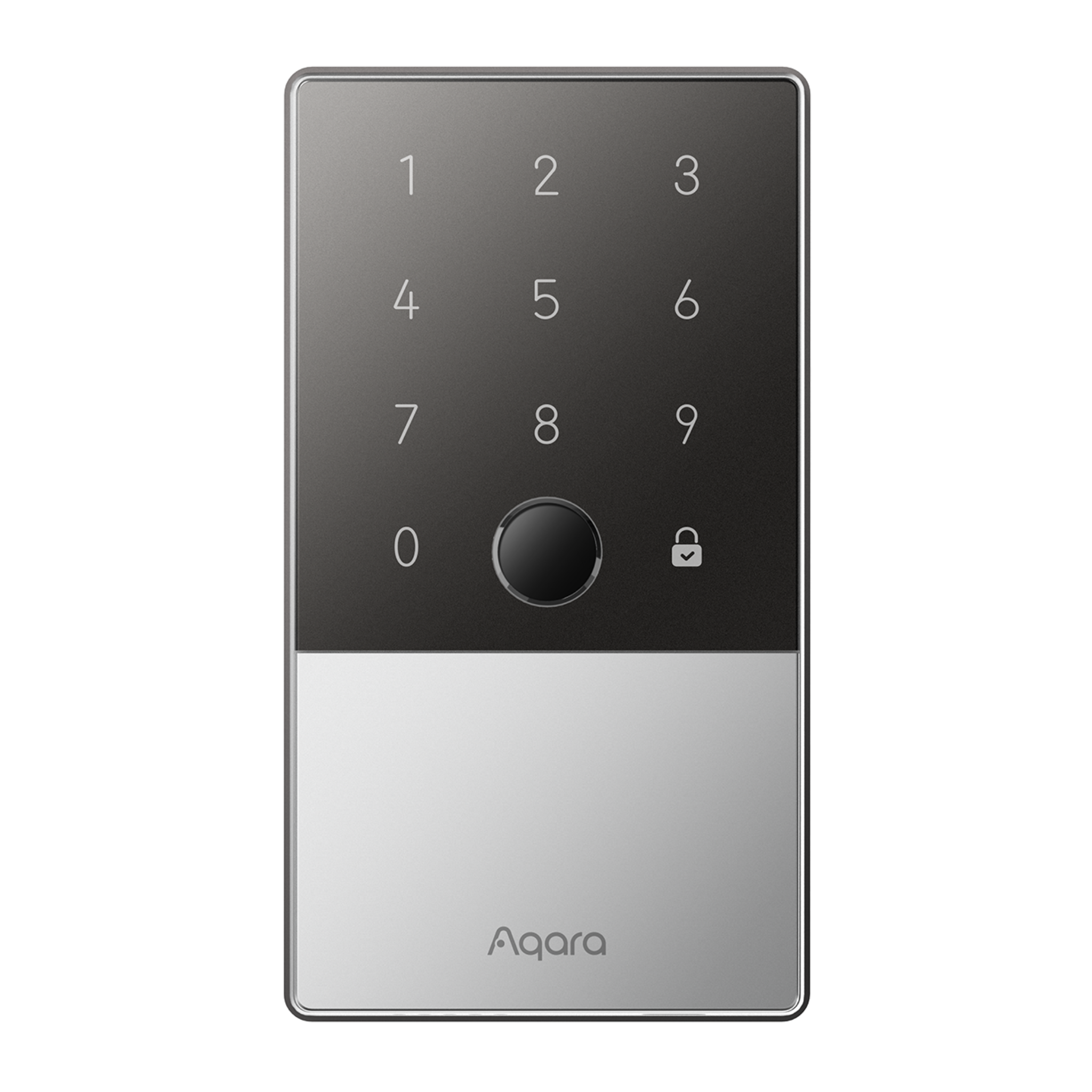

• Fingerprint Reader & Keypad: Unlock in 0.5 seconds using your fingerprint or password. No phone or key required. Secure with a frosted surface to prevent peeking and the option for temporary passwords for visitors.
• Auto Lock & Door Sensing: Built-in gyroscope tracks door status, sending reminders to close it and automatically locking when shut.
• Aqara & Third-Party Integrations: Compatible with Google Home, Alexa, IFTTT, and more via Aqara Zigbee 3.0 hub, enabling seamless automation like unlocking via Aqara video doorbell.

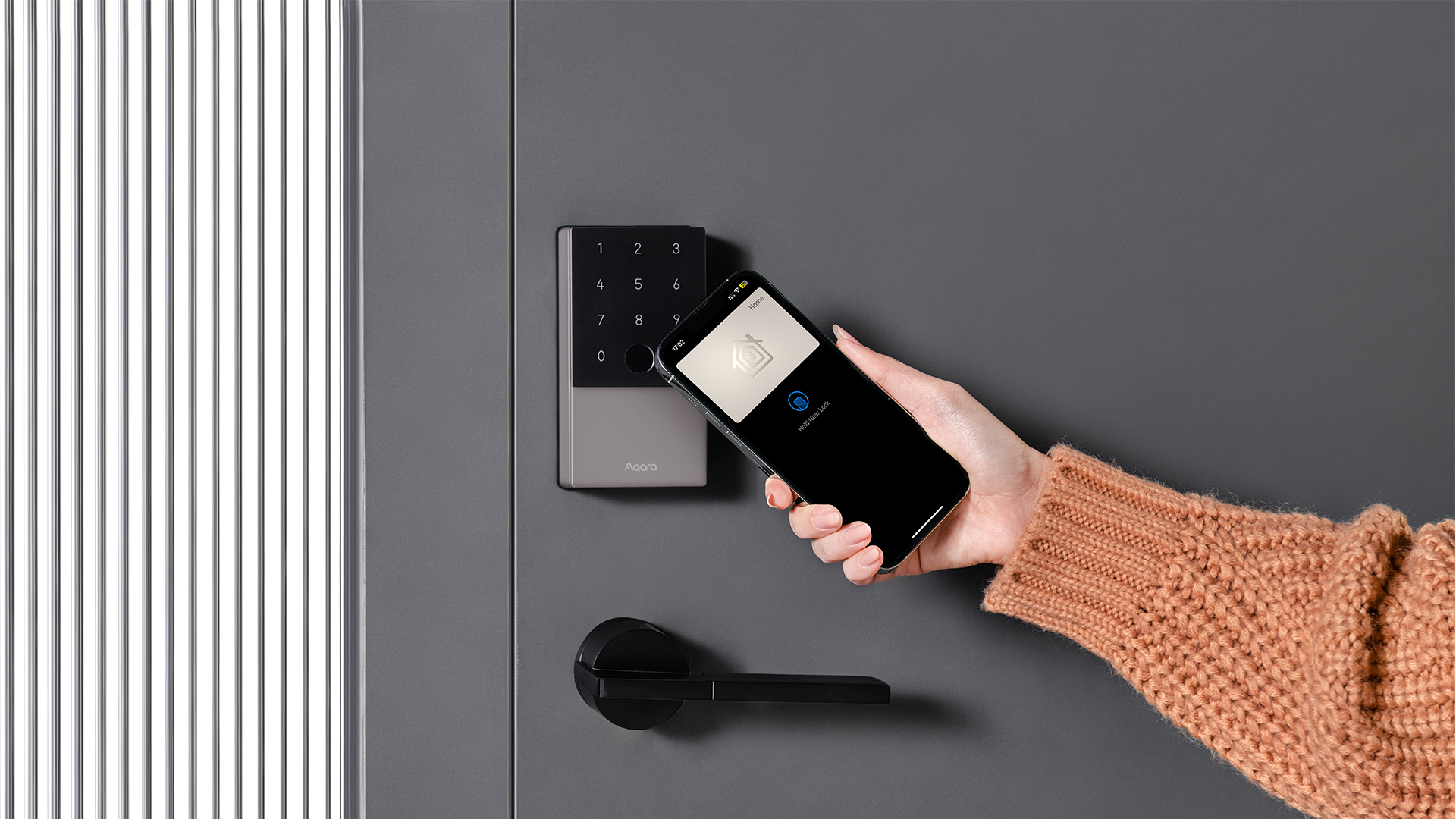

• Apple Home & Home Key Support: Open doors effortlessly with the Apple Home App or Apple Watch. No keys needed—just tap to unlock your smart home.
• Security & Durability: Robust catalpa alloy shell, anti-peep backlit keyboard, and secure unlocking methods ensure top-tier protection.

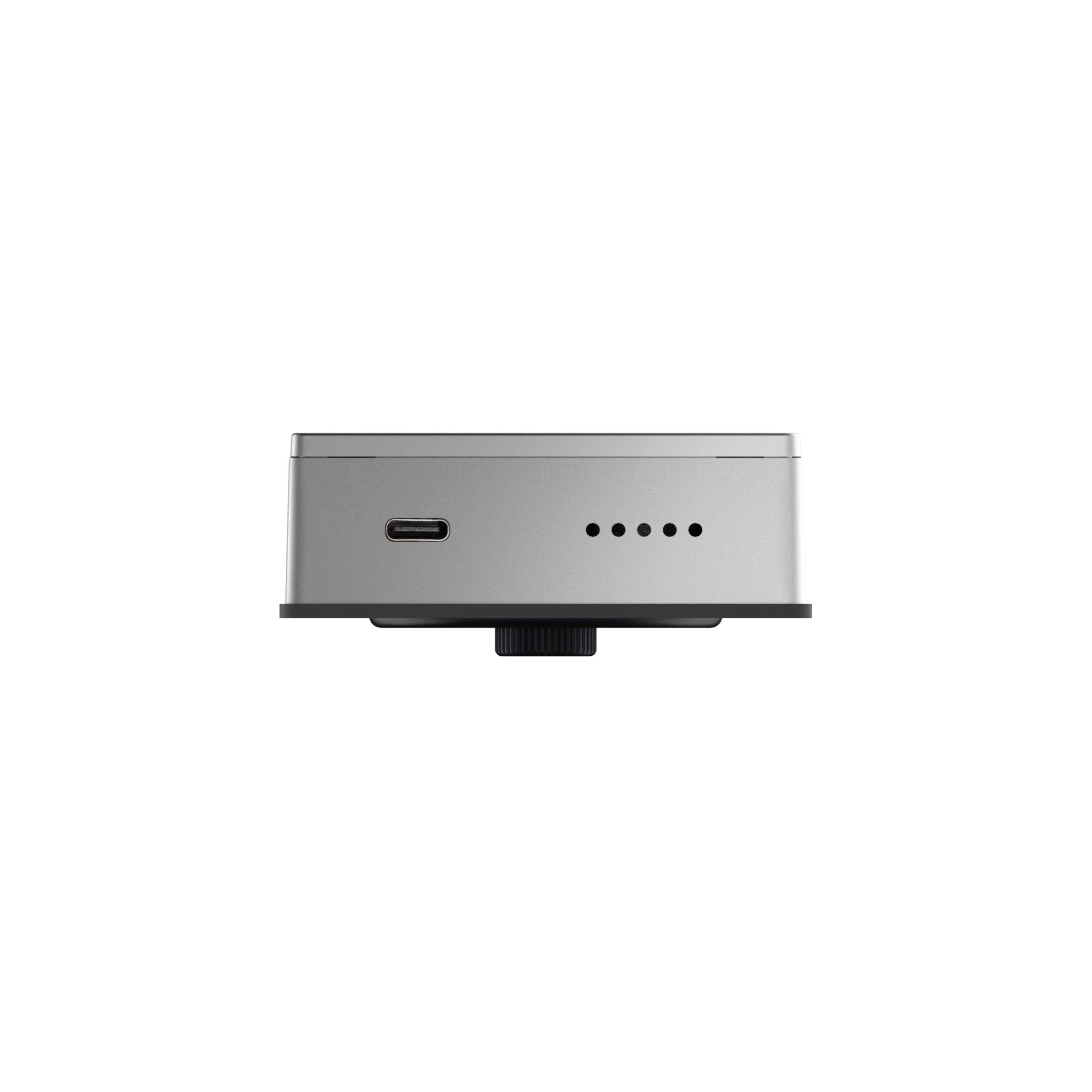

• Emergency Unlock Options: Use USB-C for temporary power or a mechanical key if the battery is dead, ensuring you're never locked out.
• 8-Month Battery Life & IP65 Waterproof: Long-lasting up to 8 months with energy-efficient Zigbee. Easily replaceable AA batteries and IP65 waterproof rating ensure durability in extreme temperatures (-35°C to 66°C).

Note:
* Aqara Zigbee 3.0 hub is required.
** Calculated by opening the door 8 times a day, the batter life is 8 months.

Specifications

Colour	Shadow Grey
Model	DL-D01D
Wireless Protocols	Zigbee 3.0 IEEE 802.15.4
Dimensions	Inner 140.2 x 76.2 x 29 mm (5.51 x 3 x 1.14 in.) Outer 134.2 x 73.2 x 81.4 mm (5.28 X 2.88 x 3.2 in.)
Voice Language	Chinese, English, French, Spanish (Default: English)
Battery	4 AA batteries (8 daily unlocks and auto-locks, > 8 months)
Emergency Power Supply	Type C external power supply, 5V DC
Electrostatic Protection	Contact: 8KV, Non-contact: 15KV
Operating Temperature	-35 °C ~ 66 °C (Outer Panel)
Operating Humidity	0 ~ 93% RH, no condensation
IP Rating	IP65 (keypad)
Lock Type	American standard deadbolt, supports 60 / 70 mm backset
Door Thickness Compatibility	35 mm – 55 mm
Door Gap Compatibility	2 mm – 10 mm
BLE	Standard: Bluetooth 5.0 Communication distance: Over 20 meters in open areas
Zigbee	Standard: Zigbee 3.0 Communication distance: Over 20 meters indoors

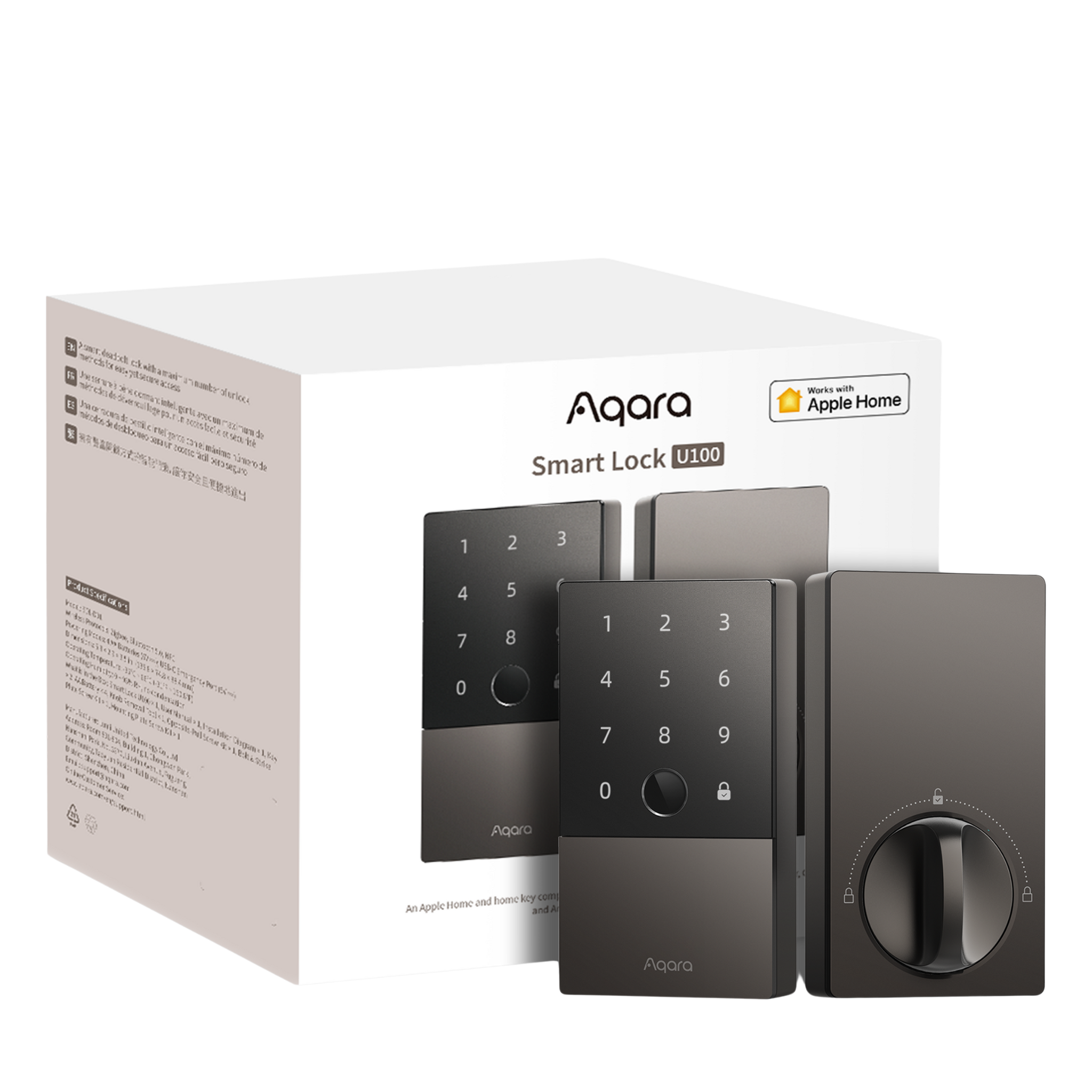

What is in the Box	Smart Lock U100 x1, User Manual x1, Installation Diagram x1, Key x2, AA Battery x4, Knob Removal Tool x1, Opposite-Pull Screw Kit x1, Bolt & Strike Plate Screw Kit x1, Mounting Plate Screw Kit x1, Aqara E1 Hub x1, NFC Card x2

Automations and Complementary Products

Click a product image to go to its page details

Scene: Instant Unlock at Your Doorstep

See who's at the door and unlock in seconds! The U100 Smart Lock integrates seamlessly with the Video Doorbell G4 — when someone rings, you can instantly view them and, if needed, unlock the door with just one tap

Scene: Trigger different scenes depending on who has entered the room

Create customised moods and scenes based on who is entering the space.

Automation Setup

IF (Condition) – Person 1 unlocks the door // THEN (Action) – Cool ceiling light ON, AC set to 18°C

IF (Condition) – Person 2 unlocks the door // THEN (Action) – Warm pendant light ON, AC set to 24°C, and music starts playing

Scene: The Ultimate Seamless Homecoming

Walk into comfort the moment you arrive home. As soon as you unlock your Aqara U100 Smart Lock, your home springs to life — curtains glide open, lights turn on, and your perfect atmosphere awaits. A truly hands-free, smarter living experience designed to make every homecoming effortless.

Automation Setup

IF (Condition) – Person 1 unlocks the door // THEN (Action) – Cool ceiling light ON, AC set to 18°C

IF (Condition) – Person 2 unlocks the door // THEN (Action) – Warm pendant light ON, AC set to 24°C, and music starts playing

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:07:36)
• Product User Manual:
  User Manual (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
