Product Info

Description

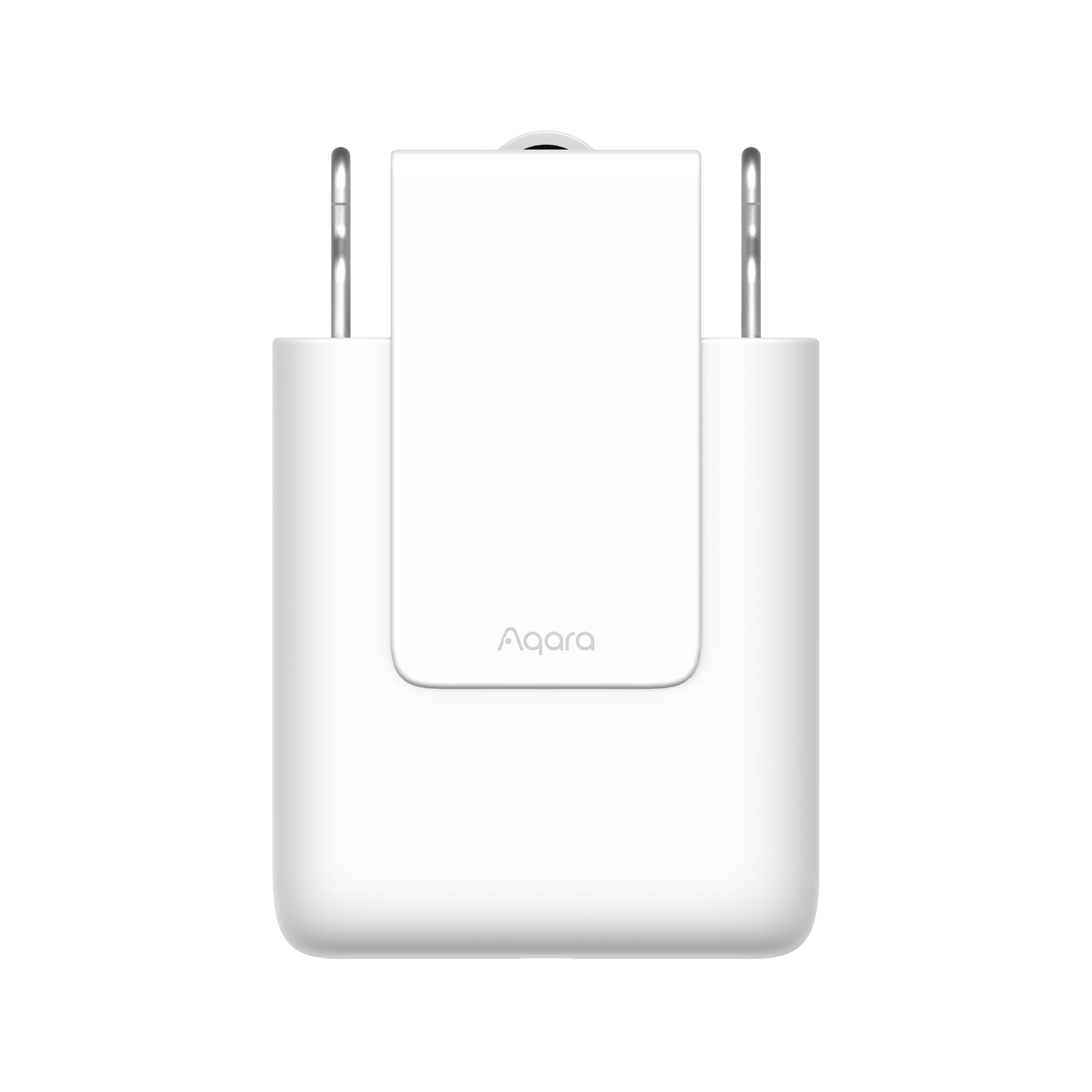

The Aqara Curtain Driver E1 is a compact, smart motor designed to automate the opening and closing of curtains with ease.

Compatible with most common curtain rails, it can be mounted in minutes without the need for any tools or complex installation. Once installed, it can be controlled remotely via the Aqara Home app or through voice commands with compatible platforms like Apple HomeKit, Amazon Alexa, and Google Assistant. Equipped with a quiet motor and a powerful battery that lasts up to a year on a single charge, the Curtain Driver E1 provides smooth, convenient operation for your curtains.

It also offers customizable schedules, so you can set curtains to open at sunrise or close at bedtime, adding convenience and privacy while optimizing natural lighting in your space.

Key Features

• Up to 1-Year Battery Life: With energy-saving tech and a 6000 mAh battery, the Curtain Driver E1 can last up to a year without charging.
• Zigbee 3.0 Protocol: Fast, stable, and energy-efficient smart home tech for better stability, compatibility, and longer support.

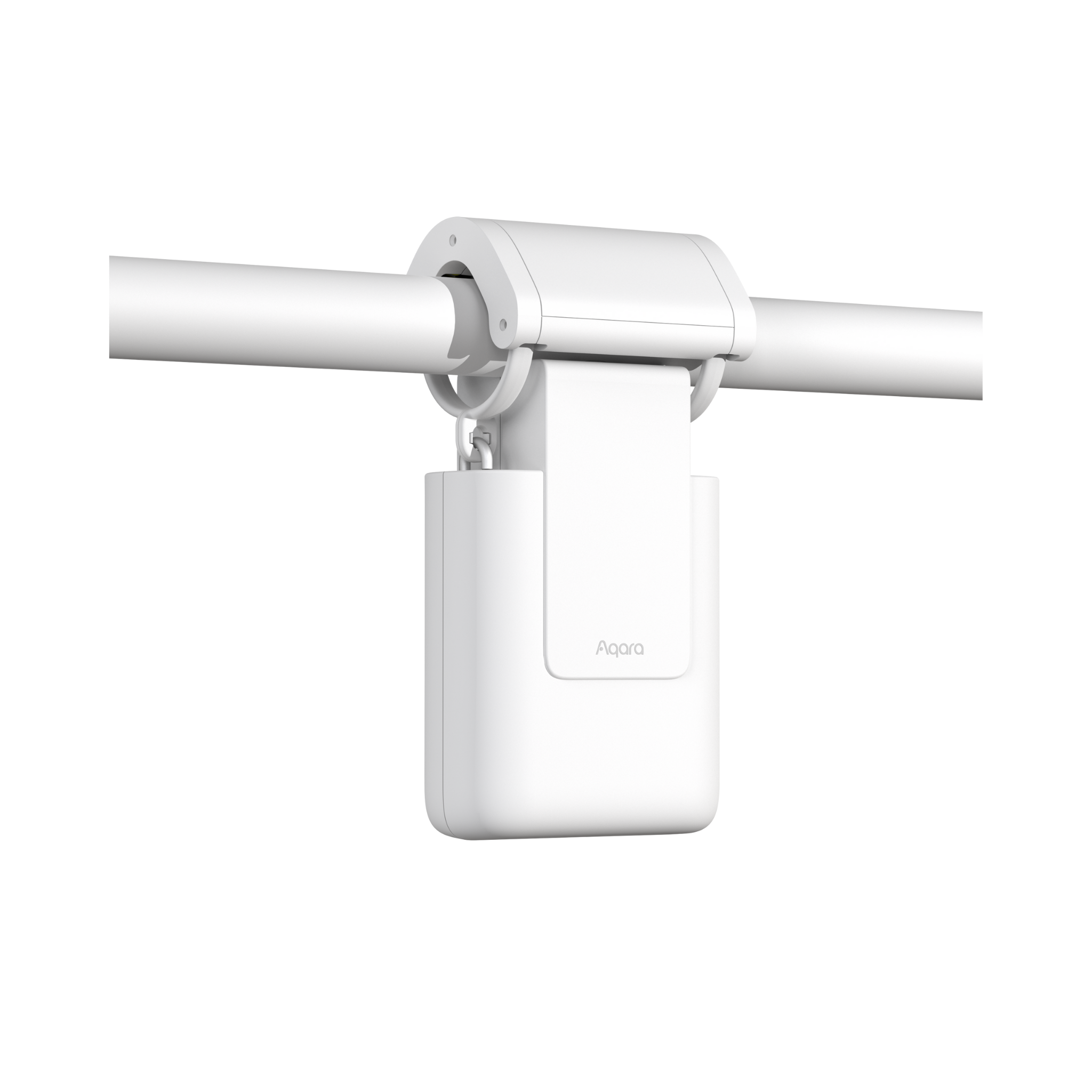

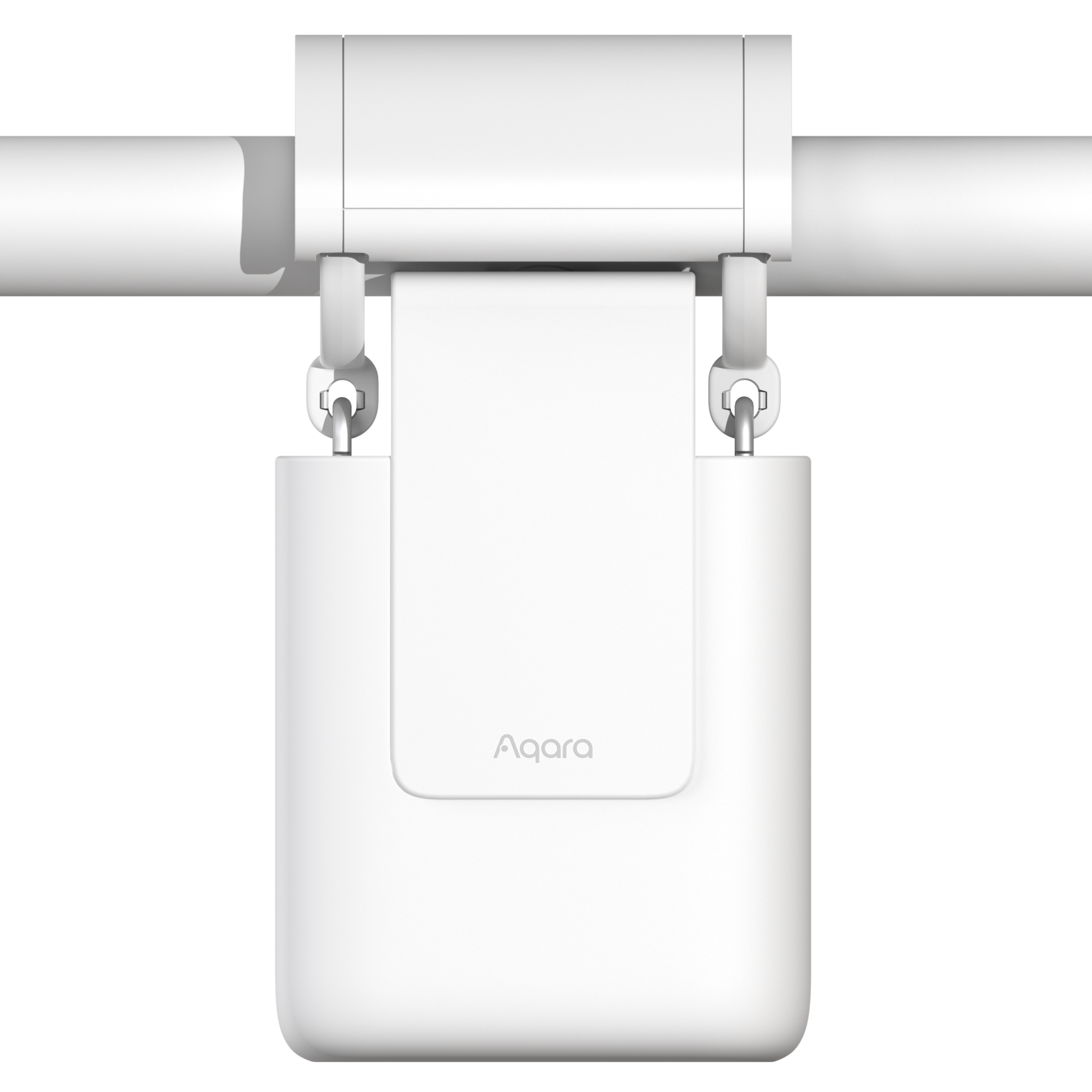

• Popular Curtain Track Support: Supports most curtain rails; Rod Version works with all types, while Track Version supports U- and I-Rails.
• Built-in Light Sensor: Automatically adjusts curtains based on brightness; opens when it’s bright, closes when it’s dark.
• Maximum Load of 12 kg: Powerful motor handles heavy curtains, with a max load of 12 kg.
• Easy Installation: Tool-free setup; simply mount onto existing curtain rails.

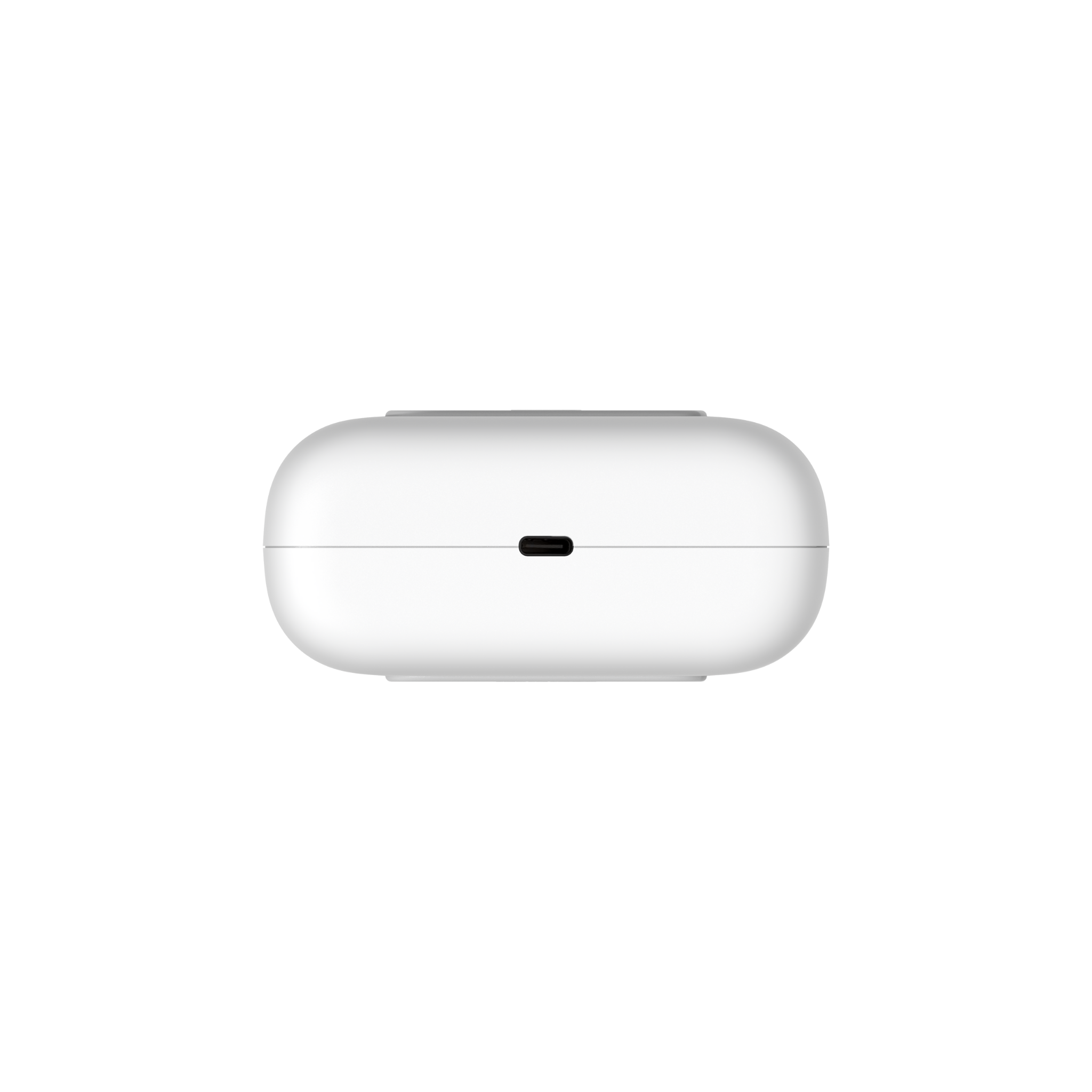

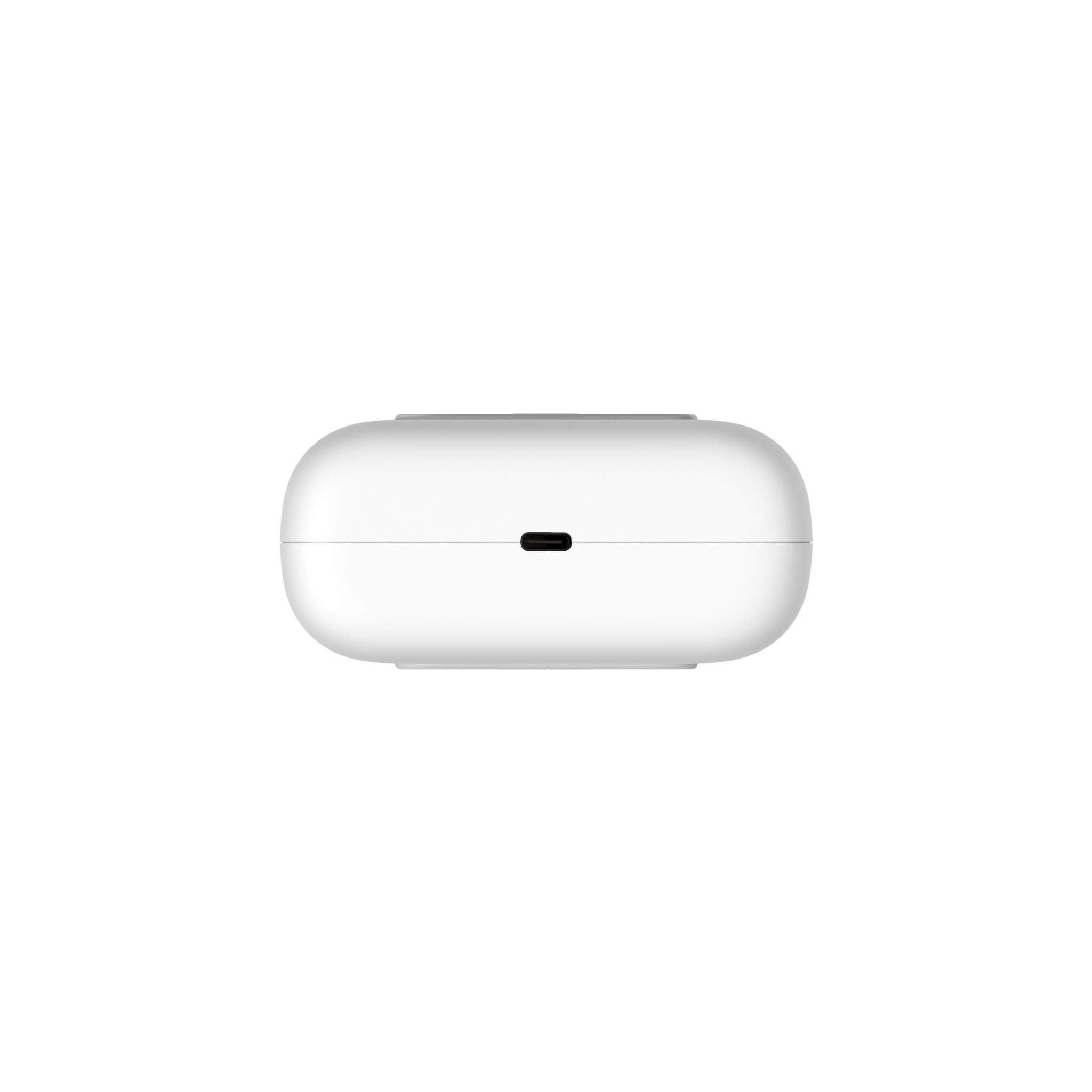

• USB-C Charging/Power: Modern Type-C port for charging or continuous power (requires a free cable placement to avoid tangling).
• One-Button Remote Control: Control curtains via Aqara Home app, Aqara Mini Switch, or Aqara Cube T1 Pro.
• Ecosystem Support: Compatible with HomeKit, Alexa, Google, IFTTT, Alice, Marusya for voice control.
• Device Grouping: Control one or two Curtain Drivers per window, synced for simultaneous operation.
• Device Grouping: Control one or two Curtain Drivers per window, synced for simultaneous operation.
• Smart Home Automations: Set automations based on time, weather, or other Aqara devices for hands-free control.
• Adjustable Speed & Scenes: Customize motor speed for quieter operation and gradual curtain opening, simulating a sunrise effect.

Note:
* Home hub and subscription are required.

Specifications

Model	AM025GLW02 (Rod) || AM025GLW01 (Track)
Colour	White
Wireless Protocol	Zigbee 3.0 IEEE 802.15.4
Dimensions	140.5 x 96 x 44 mm
Operating Temperature	-10°C ~ 50°C
Operating humidity	0-95% RH, no condensation
Battery Type	Lithium battery (not replaceable)
What is in the Box	- Rod Version Aqara Curtain Driver E1 x1, USB-C to USB-A Cable x1, User Manual x1, Curtain Clamp x1 (Rod Version Only), Plastic Tape x1 (Rod Version Only) - Track Version Aqara Curtain Driver E1 x1, USB-C to USB-A Cable x1, User Manual x1, Curtain Wheels (Track Version Only)

Automations and Complementary Products

Click a product image to go to its page details

Scene: Automatic Curtain Opening

Curtains open based on time, weather, lighting, or other Aqara devices. For example, they open slowly in the morning before you wake up, partially close when it's too bright, and open before sunset to enjoy the view. All settings are customizable in the Aqara Home app.

Automation Setup

IF (Condition) - It is morning // THEN (Action) - curtains open slowly to wake you up naturally

Scene: Curtains Close at Bedtime

At bedtime, an Aqara Motion Sensor triggers the Curtain Driver E1 to close the curtains, enhancing comfort and privacy while you sleep.

Automation Setup

IF (Condition) - Time is equal to "bedtime" and motion is detected // THEN (Action) - curtains close for instant privacy

Scene: Integrating Automation into Everyday Life

When the bathroom's humidity rises, an Aqara Temperature and Humidity Sensor triggers the Curtain Driver E1 to close bedroom curtains, ensuring privacy when you exit the bathroom.

Automation Setup

IF (Condition) - bathroom humidity rises above your set threshold // THEN (Action) - bedroom curtains close automatically

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:06:22)
• Product User Manual:
  User Manual - Track (PDF) ||
  User Manual - Rod (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
