Product Info

Description

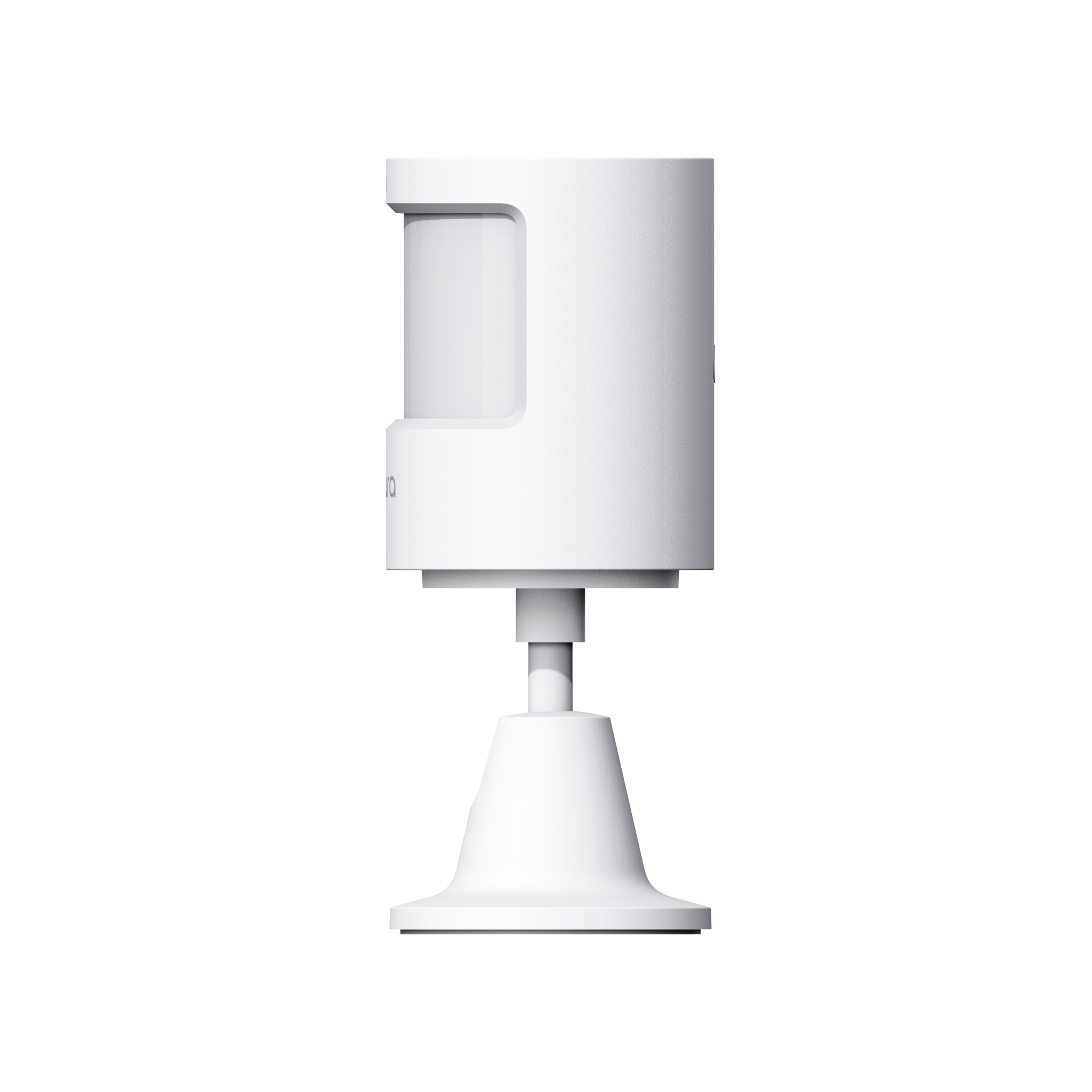

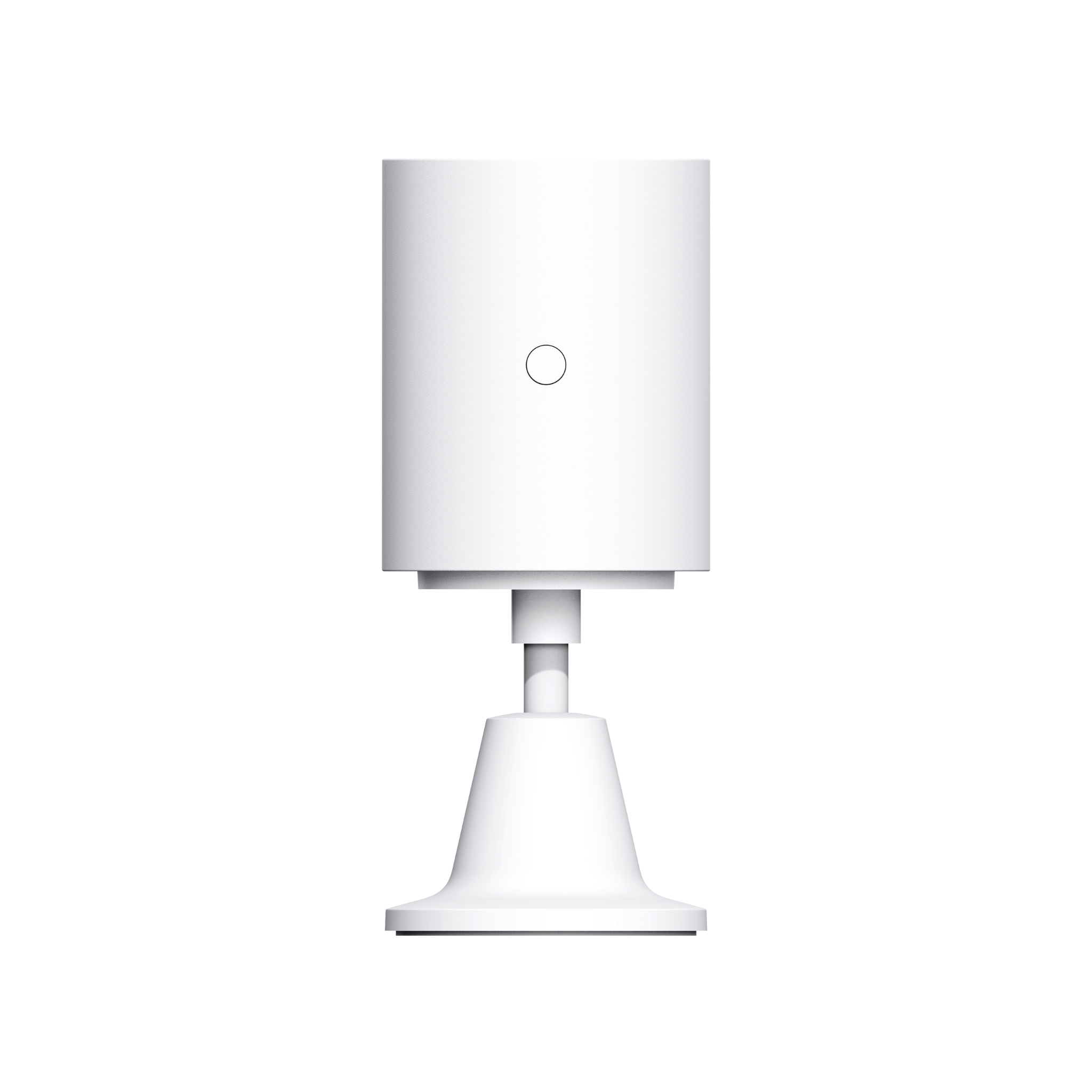

The Aqara Motion Sensor P1 is a compact and highly sensitive motion detection device designed for smart home automation. It features a wide detection range of up to 7 meters (23 feet) and a 170-degree field of view, enabling it to detect movement with precision. The sensor utilizes infrared technology for fast and accurate motion sensing, and it is equipped with advanced algorithms to reduce false alarms.

Compatible with Aqara’s ecosystem, it integrates seamlessly with various smart home hubs and systems, allowing users to automate lighting, security, and other devices based on detected motion. The sensor is also energy-efficient, with a long battery life, making it ideal for home security and smart home environments.

Key Features

• Configurable Detection Timeout: No more fixed cooldowns! Set the detection timeout anywhere from 1–200 seconds. Just press the device button to confirm. (Note: shorter timeouts reduce battery life.)
• Record-Breaking 5-Year Battery Life*: Thanks to energy-saving tech and high-capacity batteries, the P1 can last up to 5 years—even in low temperatures or with fast detection settings.
• Works with Major Ecosystems: Seamless integration with HomeKit, Alexa, IFTTT, and more. Plus, Matter support will arrive via an OTA hub update for future-proof compatibility.
• Ultra-Wide 170° Field of View: Detects motion across a huge area: 170° up to 2 meters, and 150° up to 7 meters. The included 360° adjustable stand makes placement flexible and precise.
• Adjustable Sensitivity: Fine-tune how far the sensor can detect with three modes (High, Medium, Low). Reduce false alarms and adapt detection to your space.
• Built-in Light Sensor: Smarter lighting control! Lights only turn on when motion is detected and the room is dark—saving energy and extending bulb life.
• Smart Home Automation Ready: Power endless automations: turn on lights, close curtains, control entertainment devices, and more—hands-free and fully automated.
• Security & Alerts: “Away Mode” for peace of mind. The P1 triggers local alarms (sound & light) and sends instant cloud notifications when motion is detected.
• Stable Zigbee 3.0 Connectivity: Fast, reliable, and energy-efficient smart home protocol with better stability, extended support, and more advanced features.
• Futureproof via OTA Updates: Regular over-the-air updates ensure your P1 stays current with new features and performance improvements.

Note:
* 5-year battery life can be achieved with the LED indication function turned off and with detection timeout not less than 30 seconds.
** Aqara Zigbee 3.0 hub and controllers are required for this functionality.

Specifications

Colour	White
Model	MS-S02
Battery	CR2450
Wireless Protocol:	Zigbee 3.0
Dimensions	33.1 x 33.1 x 41.6 mm
Operating Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity	0 - 95%RH, non-condensing
Zigbee Operation Frequency	2405-2480 MHz
Zigbee Maximum Output Power	≤ 13 dBm

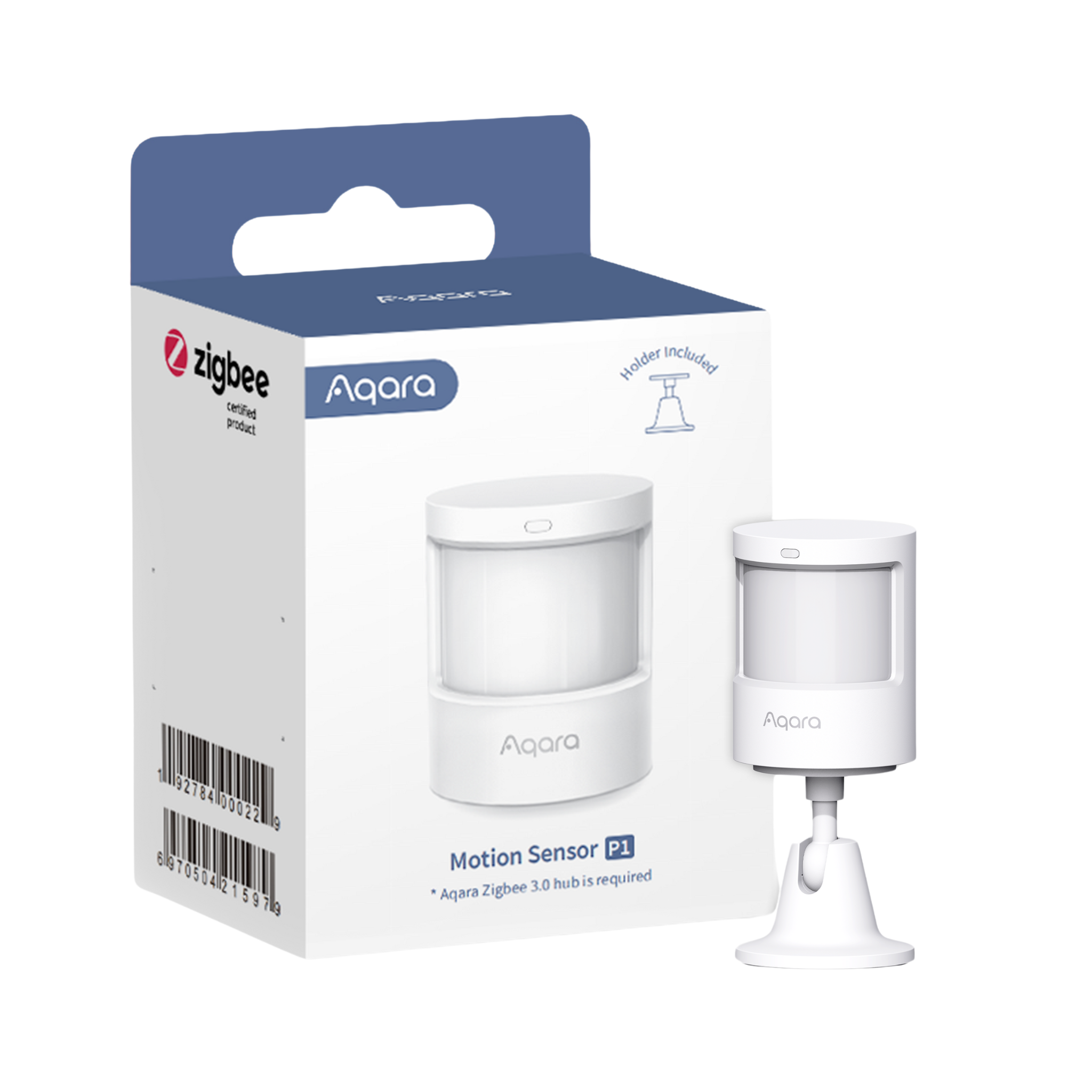

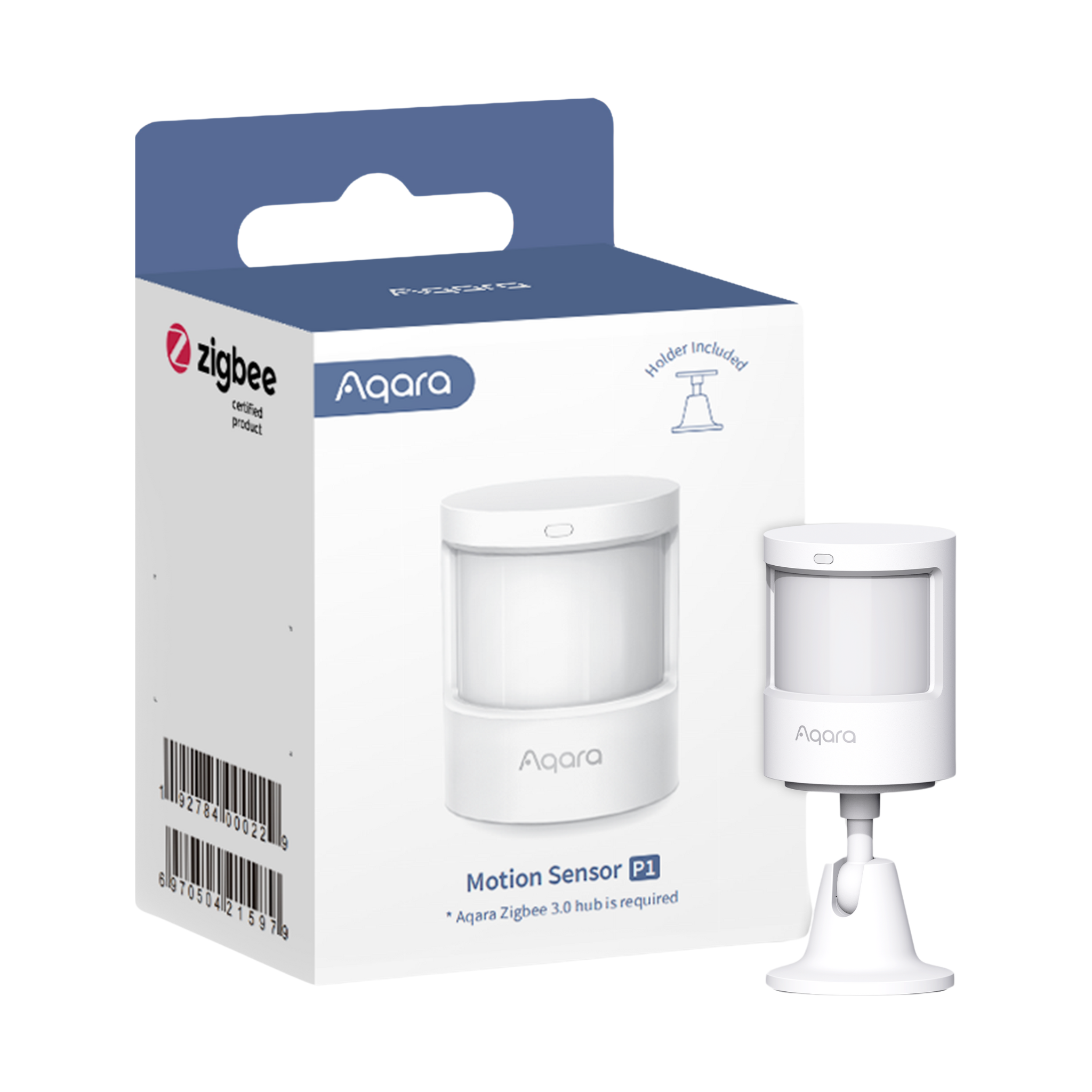

What's in the Box	Motion Sensor P1 x1, Holder x1, Sticker x1, User Manual x1

Automations and Complementary Products

Click a product image to go to its page details

Scene: Smart Motion Lighting:

Say goodbye to fumbling for switches! The Motion Sensor P1 detects movement in dark areas and instantly triggers your Smart Wall Switch to light up the room. Once you leave, the lights automatically turn off, saving energy without lifting a finger.

Automation Setup

IF (Condition) - motion is detected AND ambient light is low // THEN (Action) – Turn on the LED Bulb T2 // ELSE if no motion for X minutes → turn off the lights

Scene: Bedtime Mode Activation:

Transform bedtime into a seamless experience. The Motion Sensor P1, installed above your bed, detects when you're ready to sleep and automatically activates your personalised “Good Night” scene—closing curtains, dimming lights, and setting the perfect atmosphere.

Automation Setup

IF (Condition) - bed presence is detected by Motion Sensor P1 // THEN (Action) – activate the “Good Night” scene → close curtains + turn off lights

Scene: Midnight Pathway Lighting:

Wake up without the stumble! Thanks to its built-in light sensor, the Motion Sensor P1 triggers your LED strip to softly illuminate your path when you get out of bed at night—no harsh glare, just gentle guidance.

Automation Setup

IF (Condition) - motion is detected AND ambient light is low // THEN (Action) – turn on LED strip // ELSE turn off after X minutes

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:04:27)
• Product User Manual:
  User Manual (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
