Product Info

Description

The Aqara Presence Sensor FP2 is an advanced motion and presence detection device designed for smart home environments. Equipped with millimetre-wave radar technology, it provides highly accurate and precise monitoring, detecting even subtle movements within its range. The sensor can differentiate between human presence and other motion, offering enhanced reliability in applications such as lighting control, security systems, and automation.

It features a wide detection range and can be integrated with other Aqara smart home products via the Aqara Hub, supporting automation and remote control through the Aqara Home app. The FP2 is ideal for use in rooms, corridors, and entrances, enhancing the efficiency and intelligence of smart home setups.

Key Features

• Smart Zone Positioning: Monitor rooms up to ~40 m² (430 sq ft) with a single radar sensor. Divide the space into up to 30 zones—like sofa, desk, or bed—and set unique automations for each. It’s like having multiple PIR motion sensors in one device.
• Multi-person Tracking: Detect up to 5 people at once, enabling personalised automations for each person without interference. Ideal for shared spaces like living rooms and offices.
• Ultra-Precise & Private: Millimetre-wave radar ensures stable and highly accurate detection—even when sitting or sleeping. No cameras, no images collected, just discreet, non-intrusive sensing.
• Seamless Smart Home Integration: Works natively with Apple Home, Google Home, Alexa, and Home Assistant—without requiring a hub. Perfect for smart home enthusiasts who want powerful automation flexibility.
• Fall Detection & Alerts: Detects falls with >98% accuracy and sends instant alerts. A safe, private alternative to wearables or cameras. (Recommended for ceiling installation at 2.5–2.8 m height, with a detection radius of 2 m.)
• Built-in Light Sensor: Adds brightness detection for advanced lighting automations, such as turning on lights at dusk or dimming when natural light is sufficient.
• Reliable Local Automations: Once set up, automations run locally—even if Wi-Fi is unstable—keeping your home secure and private at all times.

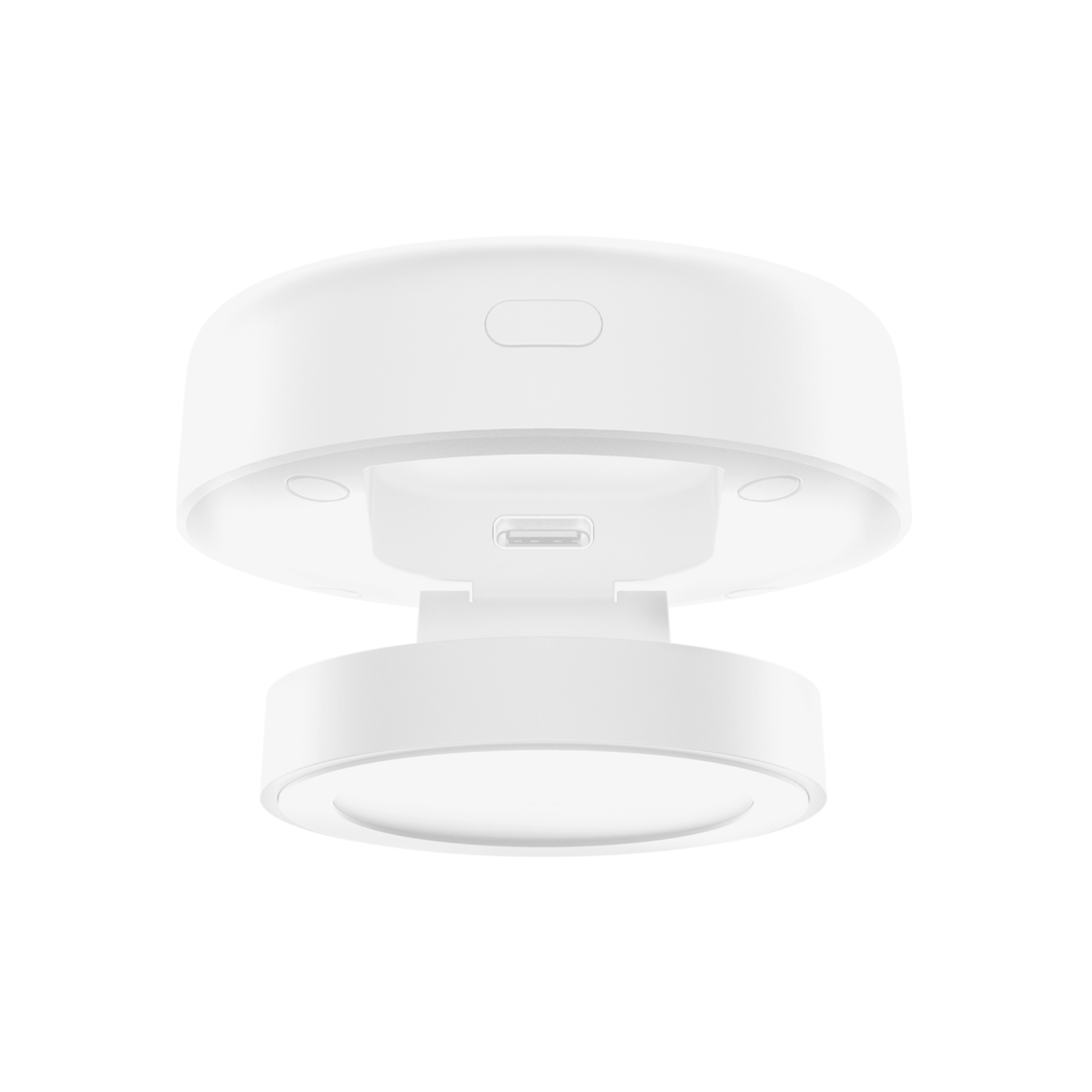

• Flexible & Durable Design: IPX5 water resistance makes it suitable for bathrooms or kitchens. With a hidden USB-C port, you can use different cables for maximum installation flexibility.

Note:
* Recommended open detection space: 10–40 m².
** Best results achieved when tracking up to 3 people.
*** Fall detection works only with ceiling installation and cannot replace medical equipment. It may not detect all types of falls (e.g., slow slides or fainting while seated).
**** Bluetooth is reserved for future Matter support.

Specifications

Model	PS-S02D
Wireless Protocol	Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Bluetooth 4.2
Wi-Fi Operation Frequency	2412-2472 MHz
Wi-Fi Maximum Output Power	≤ 20 dBm
Bluetooth Operation Frequency	2402-2480 MHz
Bluetooth Maximum Output Power	≤ 13 dBm
Radar Operation Frequency	60-64 GHz
Dimensions	64 x 64 x 29.5 mm (2.52 x 2.52 x 1.16 in.)
Recognition Range:	Wall mounting: 8 meters in the radial direction, with a horizontal angle of 120°, tracking up to 5 targets
Ceiling mounting	A circle with a radius of 2 meters, the accuracy of fall detection>98%
Operating Temperature	-10°C ~ 40°C
Operating Humidity	0~95% RH, non-condensing
Protection Rating	IPX5
Ports	USB-C
Power Supply	DC 5V 1A

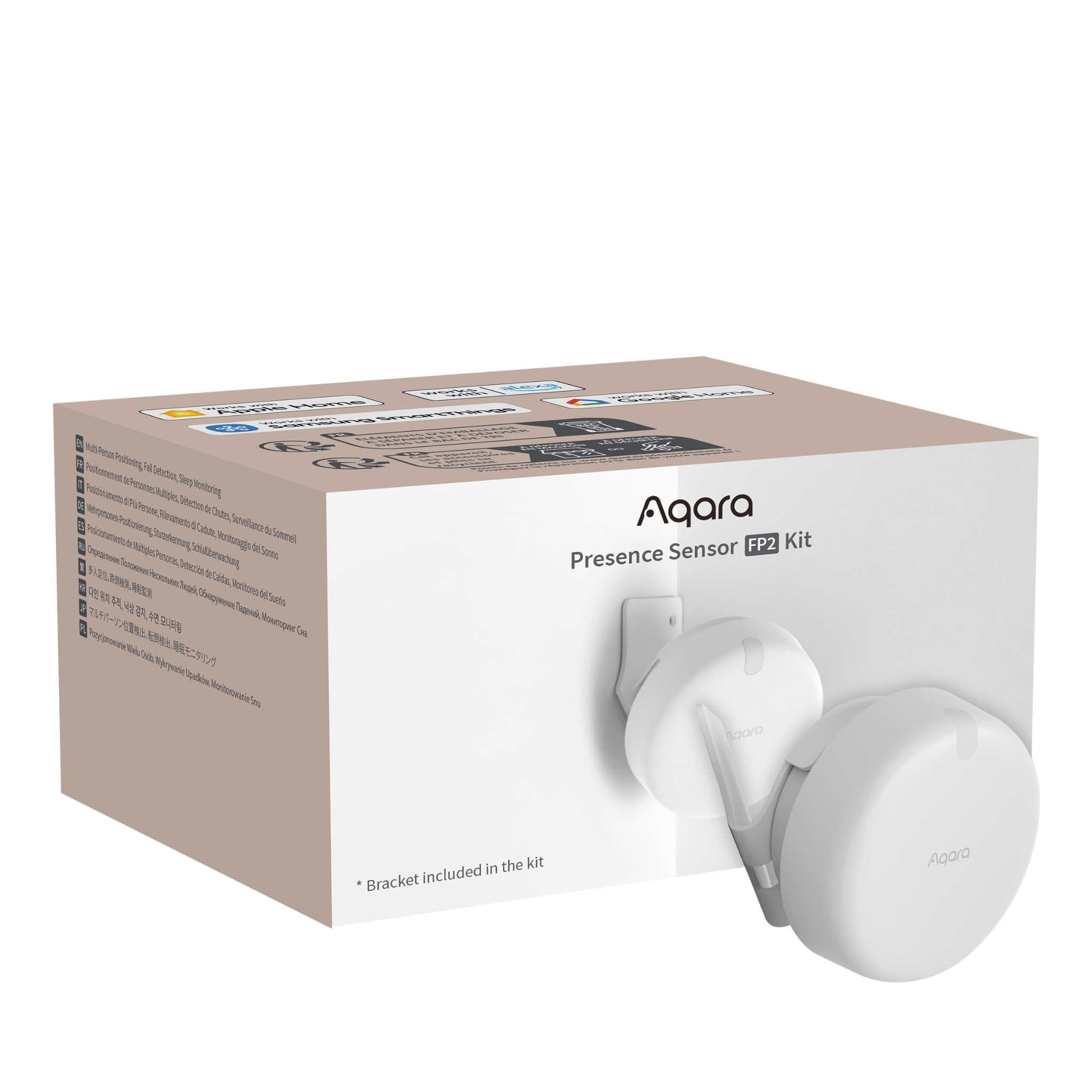

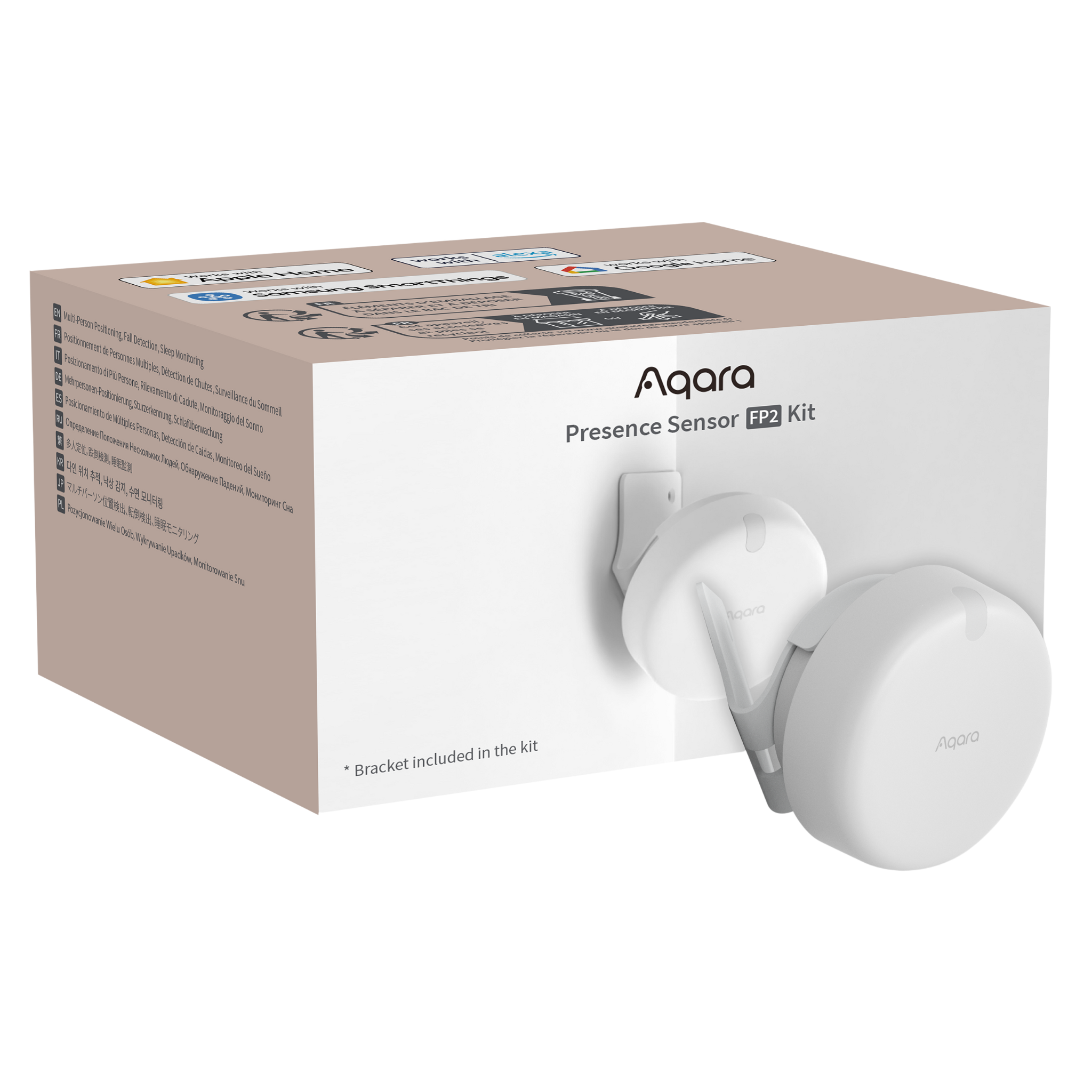

What's in the Box	Presence Sensor FP2 x1, User Manual x1, USB-C to USB-A Cable x1, Metal Plate x2, Sticker x2, Screw Kit x1

Automations and Complementary Products

Click a product image to go to its page details

Scene: Lean Away Mode Without Delays:

Step out without lifting a finger! When your Presence Sensors detect an empty home, the lights, AC, and alert systems automatically switch off — saving energy and securing your space instantly.

Automation Setup

IF (Condition) – No presence detected in any monitored room // THEN (Action): Turn off all connected lights, air conditioning, and activate the alert system // Execution Rule: Runs automatically whenever the last person leaves

Scene: Peaceful Wake-Up Mode:

Say goodbye to early-morning chaos. If someone heads to the bathroom but there’s still someone in bed, the curtains stay closed — letting your partner sleep in peace.

Automation Setup

IF (Condition) – Bathroom zone detects presence AND bed zone still detects presence // THEN (Action): Keep curtains closed // Execution Rule: Triggers only when bathroom activity starts while the bed is still occupied

Scene: Accent Lighting That Follows You:

Experience lighting that moves with you! As you sit at your desk, nearby lights switch on while others dim or turn off. Walk away, and your lighting adjusts in real time for ultimate energy efficiency and ambience..

Automation Setup

IF (Condition) – Presence detected in desktop zone // THEN (Action): Turn on lights around the desk AND turn off lights in unused zones // Execution Rule: Updates dynamically as you move between zones

Scene: Instant Home Security Trigger:

Turn your home into a smart guardian. If unexpected movement is detected in the living room, your Aqara Camera G3 instantly powers on and starts recording — giving you real-time visibility and peace of mind..

Automation Setup

IF (Condition) – Presence detected in the living room // THEN (Action): Camera G3 powers on and starts live monitoring // Execution Rule: Triggers immediately upon presence detection

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:10:32)
• Product User Manual:
  User Manual (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
