Product Info

Description

The Aqara Camera Hub G3 is an advanced smart home camera hub that combines security, control, and connectivity.

It features 2K video resolution, delivering crisp, clear footage, and a 170° wide-angle lens that provides comprehensive room coverage. Supporting Zigbee 3.0, Apple HomeKit, and 5GHz Wi-Fi, it integrates smoothly with other smart home systems.

The G3 also functions as an IR universal remote, allowing control of infrared-enabled devices throughout the home. Equipped with intelligent AI-based human detection, it accurately identifies people to reduce false alerts, and its two-way audio allows for convenient communication, making it a versatile addition to any connected home.

Key Features

• AI Facial & Gesture Recognition: Recognizes faces and gestures for personalized notifications and automations
• Zigbee 3.0 Hub: Connect up to 128 Aqara devices for home automation and remote control.
• Local IR Control: Control existing IR-compatible devices, with local automations even offline.
• Wide Compatibility: Supports HomeKit, Alexa, Google Home, and smart display streaming.
• 360° Pan & Tilt: 110° lens with pan/tilt motors for up to 340° rotation, plus face and pet tracking
• 2K 1296p Resolution: High-res 2304 x 1296 sensor for detailed images.
• Dual-Band Wi-Fi: Supports both 2.4 and 5 GHz Wi-Fi.
• Type-C Port: Modern port with low-latency, HD video out.
• Privacy Focused: Hardware shutter with automatic family recognition.
• IR Night Vision: 940 nm LEDs for clear night vision without glow.
• Universal Mount: 1/4" screw thread for versatile mounting options.
• One-Button Video Call: Quick emergency video message feature.

Note:
* The feature may be unavailable or partly available in third-party integrations such as HomeKit Secure Video.
** In HomeKit Secure Video mode, the camera records in Full HD 1080p due to the current limitations of HomeKit technology.

Specifications

Category	Hub
Colour	White
Model	CH-H03
Wireless Protocols	Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5 GHz, supports WPA3
Dimensions	123.4 x 85.1 x 67.8 mm (4.86 x 3.35 x 2.67 in.)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity	15% ~ 95% RH, no condensation
Ports	USB-C
Input Power	5V⎓2A
Total Power Consumption	10W (MAX)
Local Storage	MicroSD card (not included). CLASS 4 or above is supported, up to 128 GB storage.
Video Resolution	2K 2304x1296p
Viewing Angle	110°
Pan/Tilt Angle	Horizontal 340°, vertical 45° (upward 30°, downward 15°)

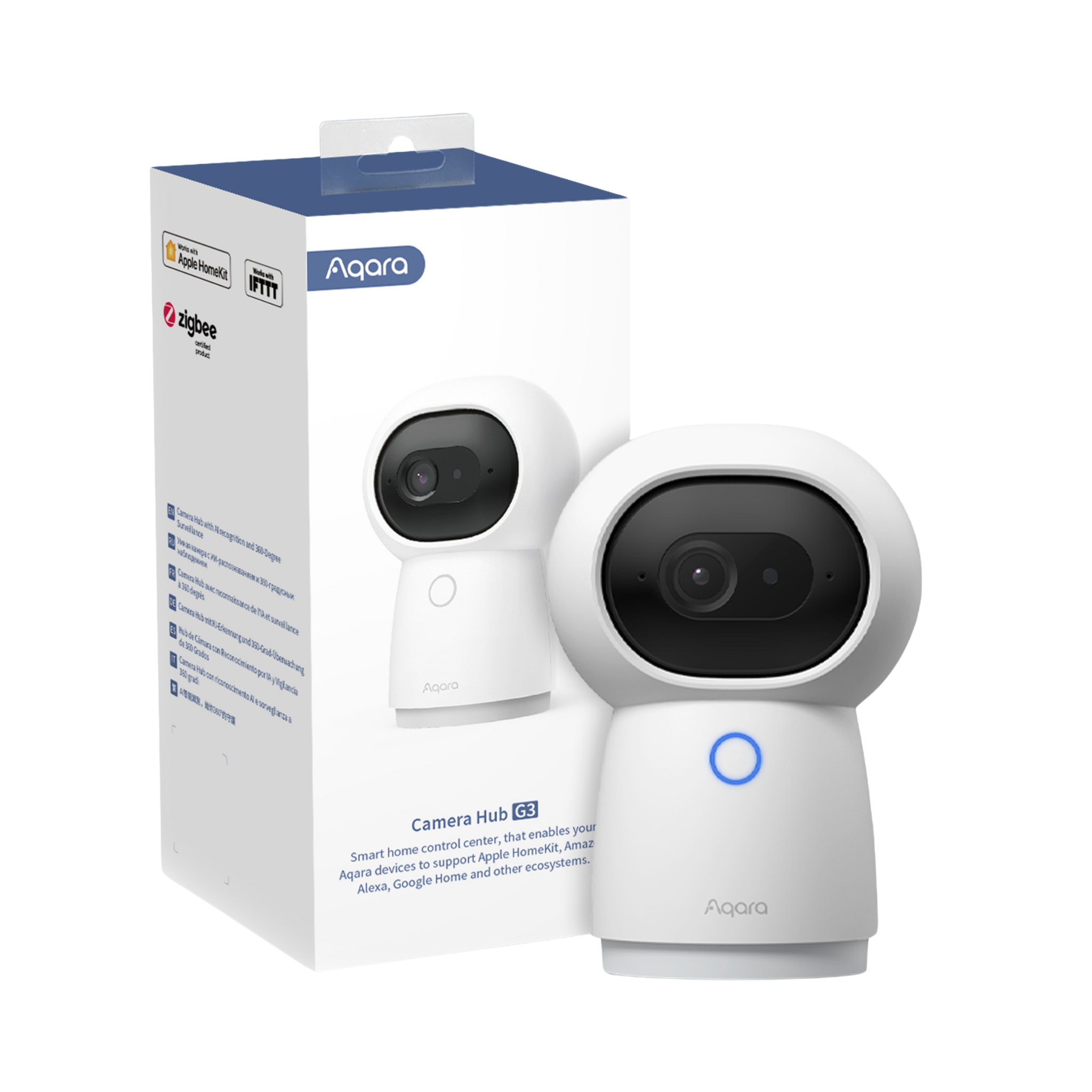

What is in the Box	Camera Hub G3 x1, User Manual x1, Power Adapter x1, Power Cable x1

Automations and Complementary Products

Click a product image to go to its page details

Scene: Automatic control of lights, TV, AC and other appliances as well as 24x7 Security Guard

The Camera Hub G3 connects all your Aqara sensors, controllers, and IR-enabled devices, allowing you to manage them through smart home automations. Simultaneously, it enhances your security by activating the siren and sending notifications if an unknown person approaches your home or if any of your sensors are triggered while you're away. All incidents will be recorded to your local or cloud storage.

Automation Setup

IF (Condition) - Camera Hub G3 presence detected // THEN (Action) - various actions

Scene: Facial and gesture recognition in automations

Upon arriving home, the camera recognizes your face, disarms the alarm, adjusts the AC to your preferred setting, halts cruising, and switches to gesture recognition mode, enabling you to trigger scenes with any of the pre-configured gestures.

Automation Setup

IF (Condition) - Camera Hub G3 Face Recognition // THEN (Action) - Camera Hub G3 Turn on gesture recognition // THEN (Action) - various other actions

Scene: Advanced event timeline and notifications

Set up the positions of your Aqara sensors in the Aqara Home app, so when you're away, the G3 can focus on the triggered sensor to record all events and send notifications. Additionally, all these occurrences can be automatically marked on the video timeline.

Automation Setup

IF (Condition) - Door & Window Sensor opened // THEN (Action) - Camera Hub G3 Turn camera to preset position

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:10:00)
• Product User Manual:
  User Manual (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
