Product Info

Description

The Aqara Smart Door Lock D100 offers seamless security and convenience with multiple unlocking options, including fingerprint, password, NFC card, mechanical key, and smartphone control via the Aqara Home app, Google Assistant, or Apple HomeKit.

Featuring a fully automatic lock body, it opens without needing to push a handle, and includes a premium glass-metal design, a 1-year rechargeable Li-Ion battery with USB-C charging, and support for Zigbee 3.0 and Bluetooth for smart home automation. With a loud 103 dB speaker, doorbell function, child lock switch, and a fast, ergonomic fingerprint reader with a sapphire coating, the D100 ensures both security and ease of use.

It fits doors of various thicknesses and offers backup options like a mechanical key and emergency charging, making it a reliable, advanced solution for any smart home.

Key Features

• Fully-Automatic Lock: Opens automatically with no need to push the handle.
• Google Assistant & HomeKit Support: Unlock with Google Assistant or Apple Home Key.
• 1-Year Li-Ion Battery: Long-lasting with easy USB-C charging.
• 9 Unlock Methods: Includes passwords, fingerprint, NFC, mechanical key, Aqara Home app, HomeKit, and Google Assistant.
• Louder Speaker & Doorbell: 103 dB sound output and doorbell function.
• Premium Metal Design: Solid, glass-metal unibody with no moving parts.
• Wider Door Thickness Support:Fits doors 40-120 mm thick.
• Mechanical Key & Emergency Charging: Backup options with mechanical key and Type-C port.
• Zigbee 3.0 & Bluetooth: Reliable Zigbee for automation, Bluetooth for direct phone connection.

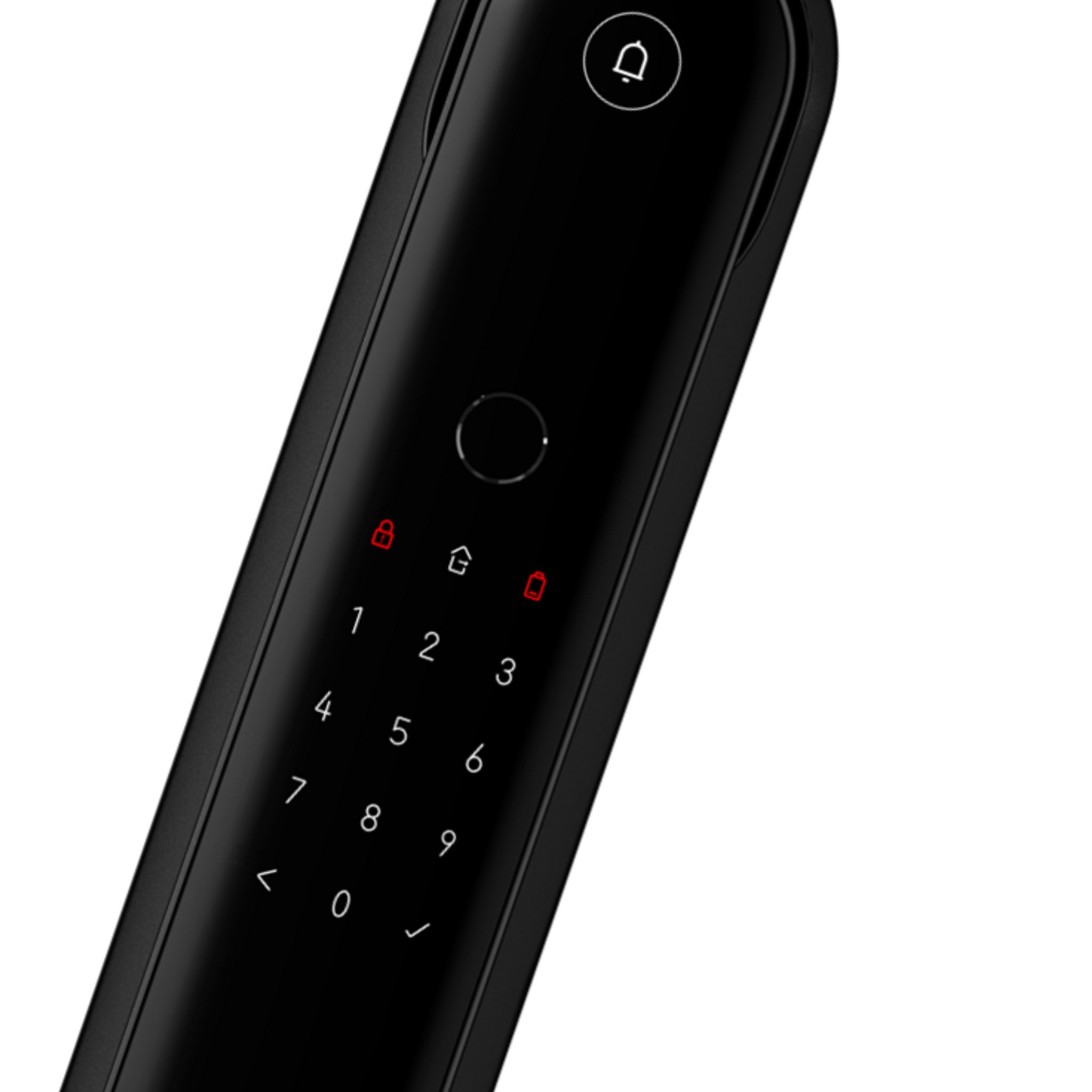

• Keypad & Away Mode: Invisible keypad with Away Mode button for automations.
• Remote Unlock via Aqara App: Unlock remotely and monitor deliveries.
• Remotely Configurable Settings: Adjust passwords and settings remotely via Zigbee.
• NFC Cards & Protection Covers: Includes two secure NFC cards and protective covers.
• Ergonomic Fingerprint Reader: Fast and natural touch with sapphire coating.

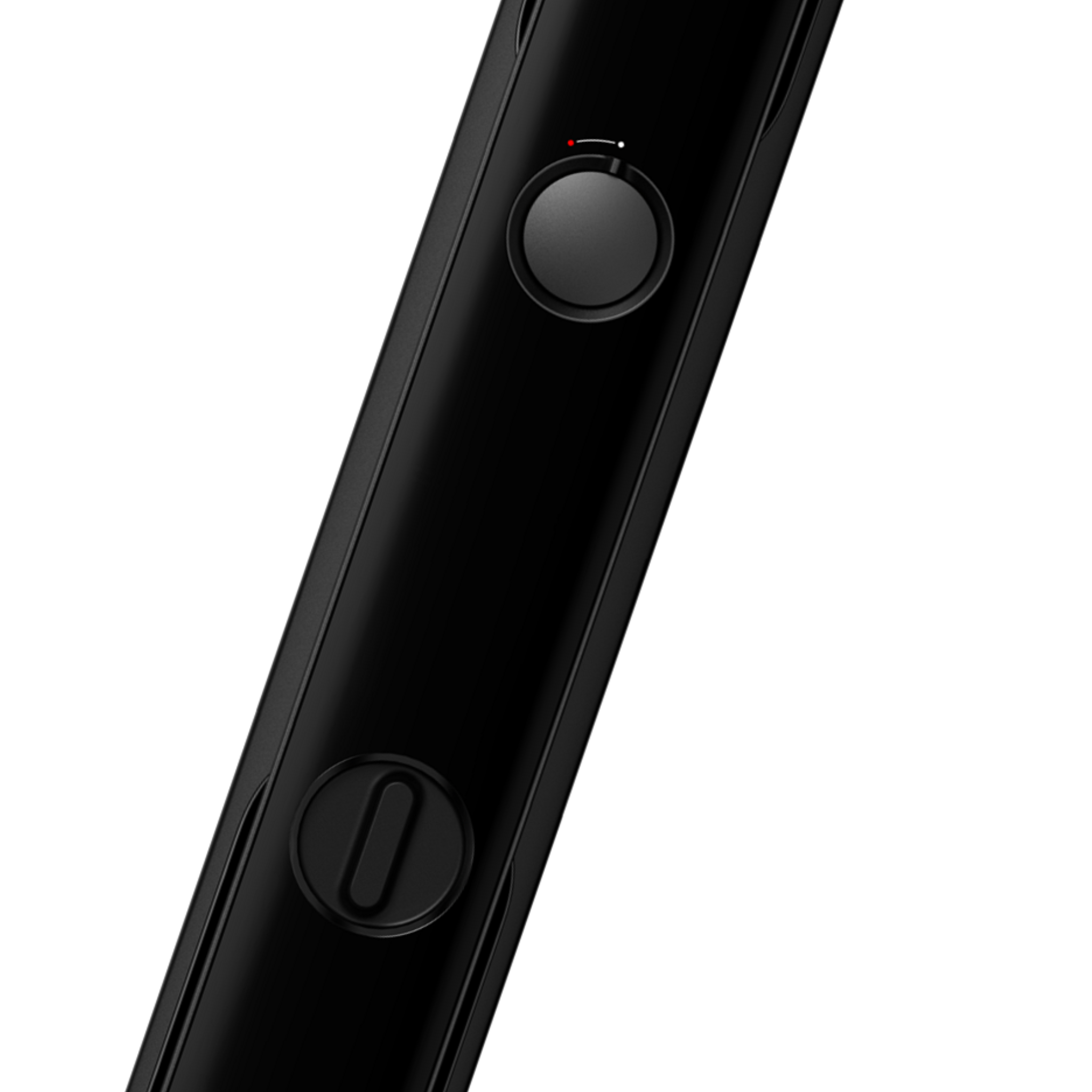

• Child Lock Switch:Prevents accidental unlocking by children

Note:
* Aqara Zigbee 3.0 hub is required
**Aqara camera hub is required

Specifications

Colour	Black
Model	ZNMS20LM
Dimensions	393.8*74.2*58.6 mm
Power Supply Modes:	2480mAh lithium-ion battery (7.2V), USB-C emergency power supply (5V)
Net Weight	4.2kg
Wireless Protocol	Zigbee, Bluetooth 5.0, NFC
Operating Temperature	-10°C ~ 55°C
Operating Humidity	0 ~ 93% RH, non-condensing
What is in the Box	Outer Panel x1, Inner Panel x1, Automatic Lock Body x1, Mechanical Lock Cylinder x1, Emergency Key x2, NFC card x2, Strike Plate x1, Accessory Package x1, Lithium Battery x1, USB-A to USB-C Charging Cable x1, Inner Finger Protection Cover x1, Outer Finger Protection Cover x1, Installation Diagram x1, User Manual x1

Automations and Complementary Products

Click a product image to go to its page details

Scene: Trigger Custom Scenes for Different Users

Personal “I’m home” settings based on your own preference.

Automation Setup

IF (Condition) – Person 1 opens the door // THEN (Action) turn on cold ceiling light, set AC to 18°C

IF (Condition) – Person 2 opens the door // THEN (Action) turn on warm pendant light, set AC to 24°C, turn on music

Scene: Remote Locking & Communication

Even if you are not home, you can greet and converse with your visitor at your front door, and even let them in.

Automation Setup

IF (Condition) – Doorbell rings or notification of entrance presence detected // THEN (Action) – Interact with the Smart Door Lock via the Aqara app, interact with the visitor and remote unlock

Scene: Enhanced Security with Face Recognition

Increase security by recording and initiating face recognition in the event of an unknown person enters the house.

Automation Setup

IF (Condition) – Lock opened using a mechanical key // THEN (Action) – Turn on Camera Hub G3, face the door, start recording and send notification

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:08:25)
• Product User Manual:
  User Manual (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
