Product Info

Description

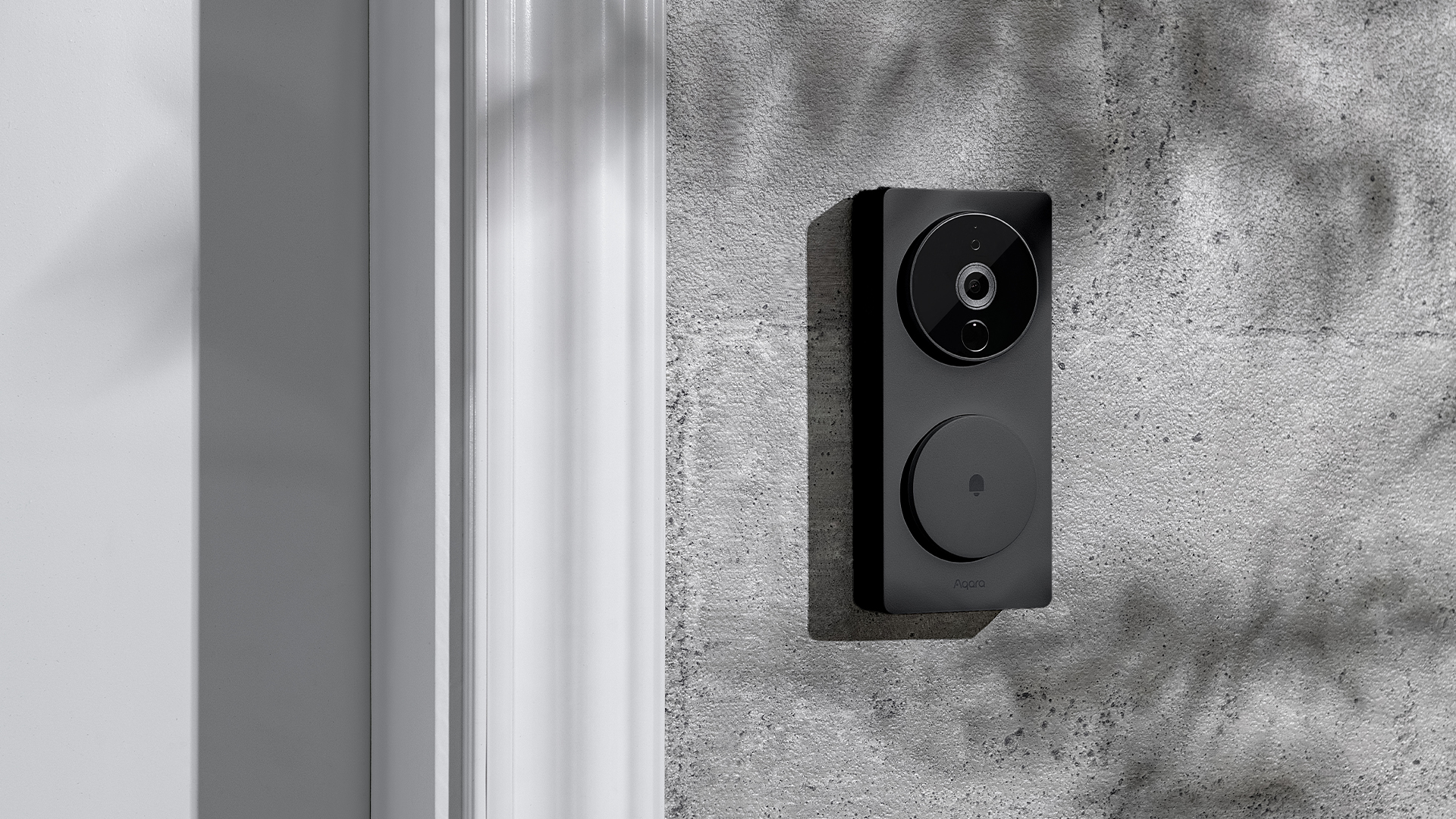

The Aqara Smart Video Doorbell G4 is a versatile video doorbell that offers both wired and battery-powered options, making installation a breeze for any home. It’s the first of its kind to support Apple’s HomeKit Secure Video, while also seamlessly streaming to Google and Alexa smart displays. With built-in facial recognition, it notifies you of visitors and can trigger personalized automations, adding an extra layer of security and convenience with minimal setup.

Key Features

• Local AI Face Recognition: Recognizes familiar faces locally and provides instant notifications with name tags, even without internet connection. Supports custom automations for specific visitors.
• Apple HomeKit Compatible: The first battery-powered HomeKit Secure Video doorbell, integrating securely with Apple devices for private video storage. Also works with Google, Alexa, and Yandex for seamless smart home connections.
• Free Cloud & Local Storage: Enjoy 7 days of free cloud storage and an option for local storage with an SD card (sold separately). NAS support is coming soon.
• Live Video & Two-Way Talk: Check your door and talk to visitors from anywhere with clear 1080p HD video and 162° wide-angle view, plus IPX3 waterproofing for outdoor use.
• Battery & Wired Power: Choose between up to 4 months of battery life or wired setup with battery backup for reliability during outages.
• Indoor Chime-Repeater: Includes a loud 95 dB chime with USB-C power for flexible placement, even supporting backup power with a mini-UPS or power bank.
• Voice Changing Option: Unique voice-changing feature lets users alter their voice for privacy, with options like “uncle” or “robot” tones.
• Do Not Disturb Mode: Customize ring time and volume, with a night mode to avoid disturbances.
• Custom Ringtones: Upload personalized ringtones and set messages, such as “Tom is not at home,” for specific visitors.
• Security Alerts: Configurable alerts for tampering, temperature changes, battery levels, and visitor linger times to monitor door safety.
• Privacy Masking: Protect neighbours’ privacy by masking up to three designated areas in the live video feed, ideal for apartment residents.

Note:
A Zigbee Hub is required for automation and linking with other smart devices.
** For HomeKit control, the latest iOS or iPadOS is recommended. HomeKit Secure Video needs a supported iCloud+ plan and a HomePod mini, HomePod, Apple TV, or iPad as a home hub. Ensure software and OS are up to date.
*** iCloud or third-party cloud storage must be managed separately via the respective app.
**** Calculation based on 35 device wakeups and 6-second event recordings daily.
***** MicroSD card not included.
****** Install in shaded areas like a porch for optimal performance.

Specifications

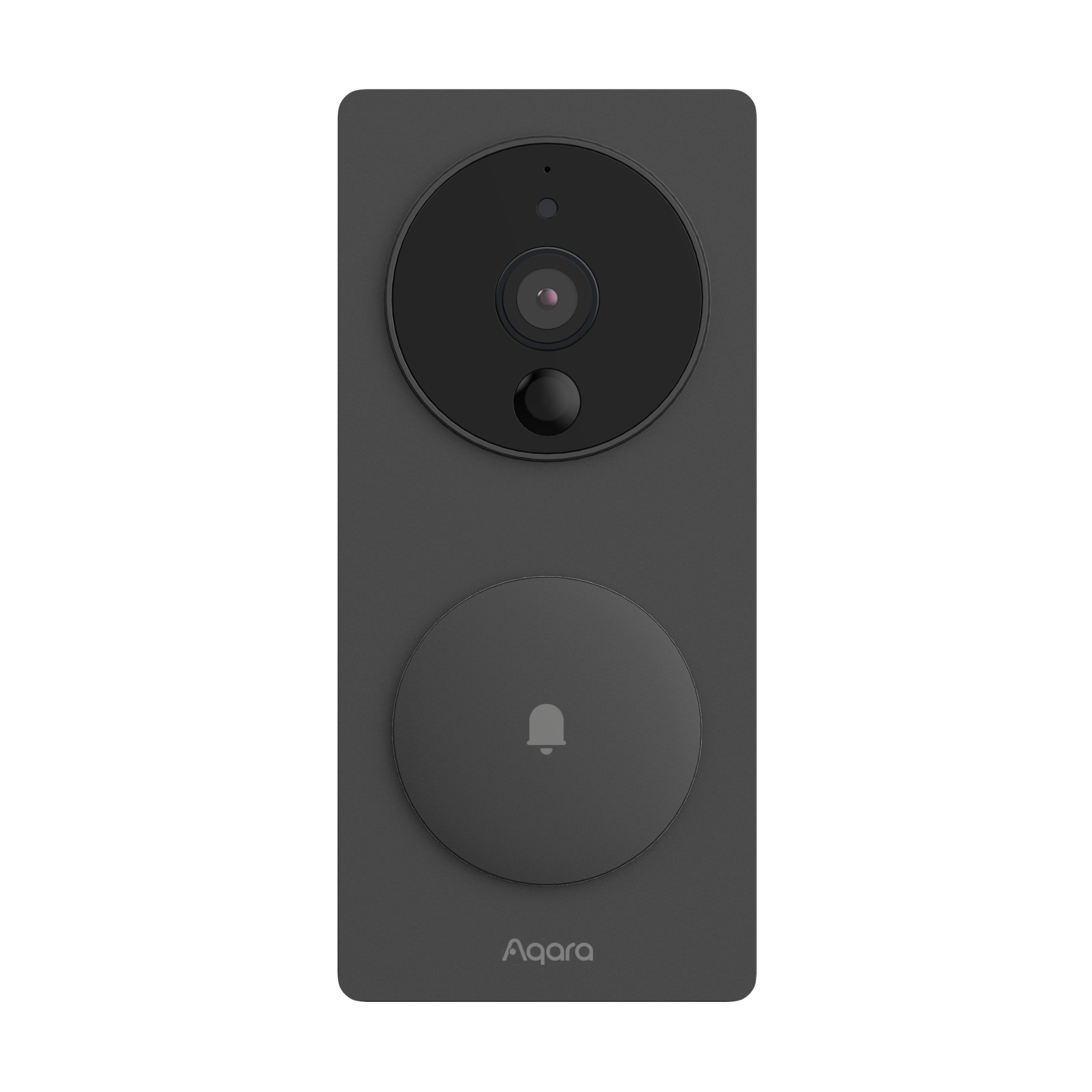

Smart Video Doorbell G4 (Main Module)

Colour	Black
Model	SVD-C03/4
Video Resolution	1080p
Viewing Angle	162° (diagonal)
PIR Detection Angle	Horizontal 120°, vertical 80°
Wireless Protocol	Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Battery	6 * LR6 AA alkaline battery (Replaceable)
Wired Input	12V-24V AC 0.2A 50/60Hz 8V-24V DC 0.5A
Operating Temperature	-18°C ~ 50°C (-0.4°F ~ 122°F)
Operating Humidity	0 ~ 95% RH, no condensation

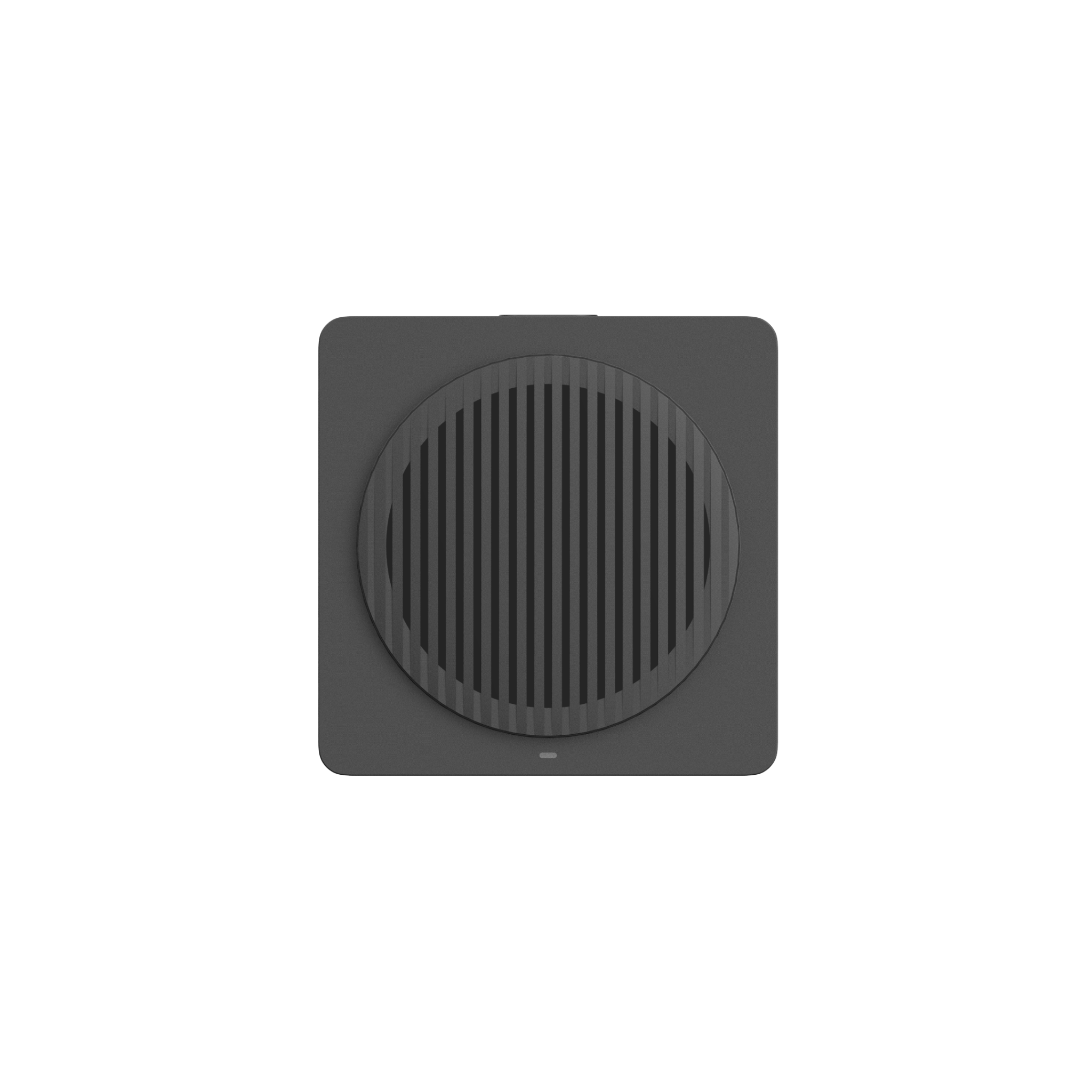

Chime

Colour	Black
Model	SVD-C03/4
Loudspeaker Power	2 W
Wireless Protocols	Wi-Fi IEEE 802.11 b/g/n 2.4 GHz + WPA3
Ports	USB-C, can use and recommended to use 5V USB DC UPS
Input Power	5 V⎓1 A
Total Power Consumption:	5 W
Local Storage:	Support up to 512 GB microSD card local storage
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity	0 ~ 95% RH, no condensation

Video

Codec	H.264
Frame rate	1080p@20fps / 720p@20fps / 360p@20fps (Adjustable)

Audio

Audio

AAC coding, bidirectional voice

General Specs

Authentication	CE, EAC, UKCA, FCC, IC, KC, RCM, RoHS
Dimensions (Main module)	141.5 × 65 × 30.4mm
Doorbell net weight	163g(no battery)
Repeater size	65.2 × 65 × 28.4mm
Repeater net weigh	68g
Packing box size	148 × 96 × 73mm (5.83 × 3.78 × 2.87in.)
Gross weight	550g/ 1.21lbs
Installation	The outdoor doorbell can be wall mounted, and the indoor unit can be wall mounted or placed on flat ground

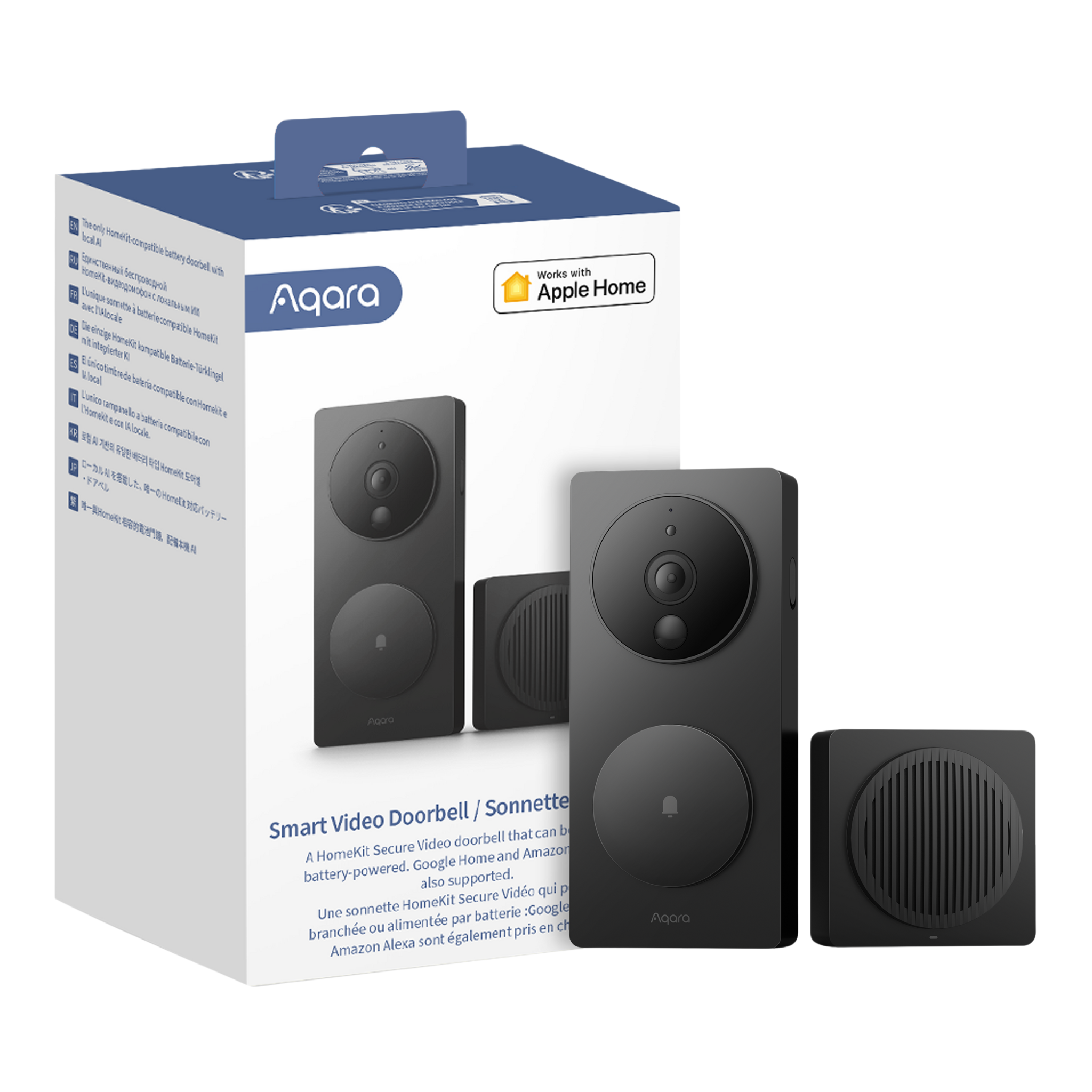

What's in the Box	Smart Video Doorbell G4 ×1, Chime Repeater ×1, AA Battery ×6, User Manual ×1, Screwdriver ×1, Wall Screws & Anchors kit ×1, 20° Wedge Bracket ×1, Wedge Screws Kit ×1, Cable for Chime ×1

Automations and Complementary Products

Click a product image to go to its page details

Contactless doorbell for maximum safety

Set up an automation to play a custom ringtone when an unknown person is detected, prompting the doorbell to ring automatically without being touched.

Automations triggered by face detection

Customize your smart home to control only the devices you need, and set different actions for when specific people, like family or a dog walker, are detected.

The G4 is a viable part of Aqara Home alert system

With Aqara Zigbee hubs, the G4 acts as both a security camera and a 95 dB siren, alerting you to events like break-ins, vibrations, or water leaks.

Product Support Documents

• Step by step installation instruction video:
  Installation Video (00:10:34)
• Product User Manual:
  User Manual (PDF)
• Product FAQs:
  Frequently Asked Questions (PDF)
