Product Info

Description

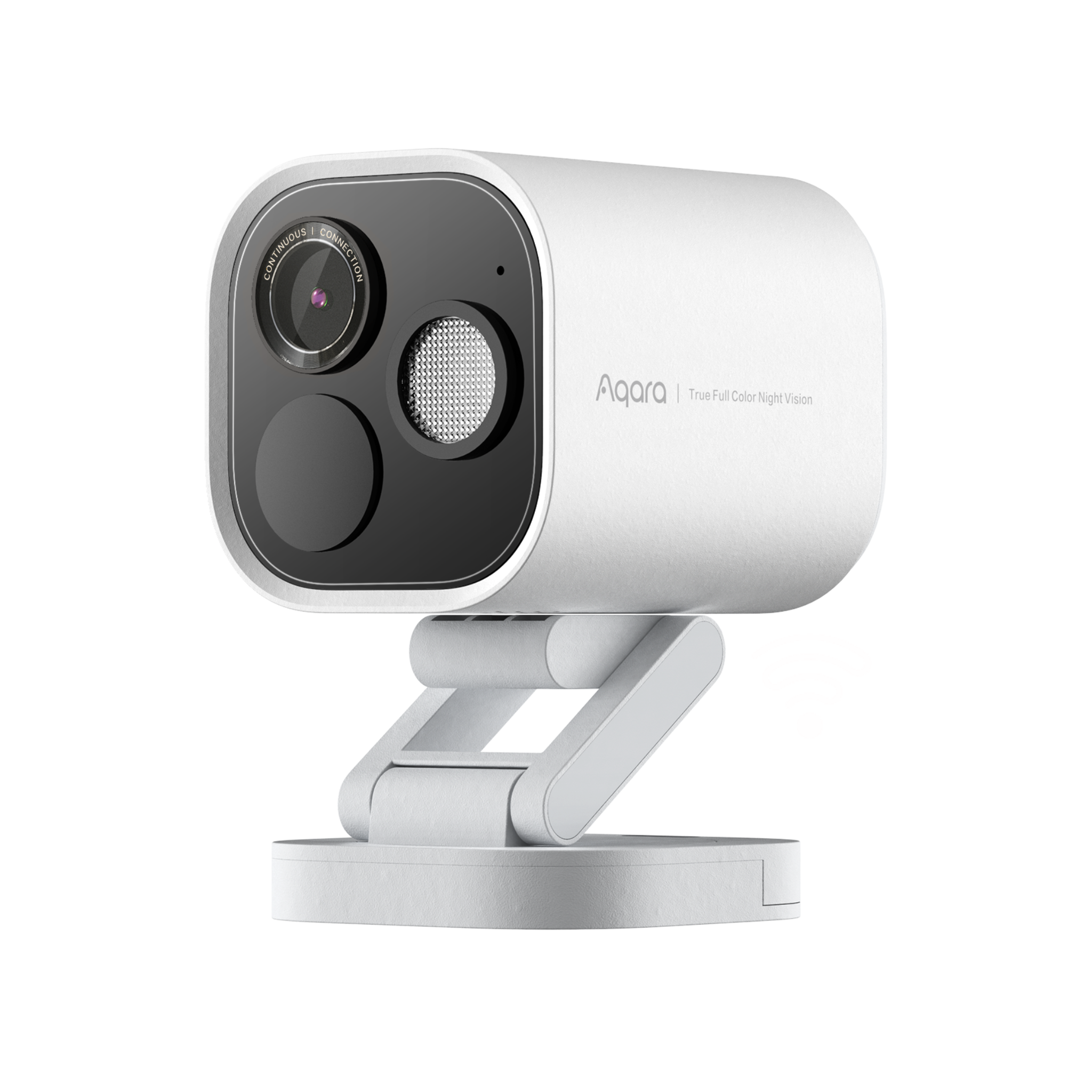

Take your outdoor security to the next level with the Camera Hub G5 Pro. Offering exceptional image quality and advanced AI recognition, it’s built to elevate your smart home experience.

With an integrated Zigbee hub, Matter Controller, and Thread Border Router, the G5 Pro acts as a powerful and versatile hub for your connected devices. Available in both Wi-Fi and Power over Ethernet (PoE) models, it provides reliable performance and flexible installation options to suit your needs.

Key Features

• First Aqara Outdoor Camera with Zigbee, Thread & Matter: The G5 Pro is a powerful smart home hub, acting as a Matter Controller, Bridge, and Thread Border Router. It supports both Aqara and third-party Matter devices, enabling seamless local automations and integration with Apple Home, Google Home, and Alexa. It also functions as a mesh repeater to enhance network coverage.
• Smart AI Detection: Visual & Audio: Equipped with a built-in Neural Processing Unit (NPU), the G5 Pro can detect people, vehicles, faces, and lingering behaviour, alongside recognising sounds like crying, barking, alarms, and coughing. It processes everything locally—even without internet—for faster, more secure automation and alerts.
• True Full-Color Night Vision: Featuring a graphene-cooled 1/1.8" sensor and f/1.0 aperture lens, the G5 Pro captures vivid, high-definition 2.6K images even in low light. Its built-in spotlight enhances clarity and acts as a visual deterrent, offering unmatched night-time protection.
• HomeKit Secure Video & End-to-End Encryption: Enjoy peace of mind with full Apple HomeKit Secure Video support. Footage is analysed locally on your Apple TV or HomePod and encrypted end-to-end, never leaving your home. Store recordings locally or back them up to NAS, iCloud, or Aqara Cloud.
• Dual-Band Stability (Wi-Fi Only): The Wi-Fi model features both 2.4GHz and 5GHz support with WPA3 encryption. It connects via a 5V/2A USB-C cable, giving users freedom to choose cable lengths for their ideal setup..
• Wired for Reliability (PoE Only): The PoE model supports Ethernet for data and power via an RJ45 port—ideal for existing installations needing rock-solid connectivity. It also includes a 5V/2A USB-C option for added setup flexibility.
• Local Storage and RTSP Compatibility: Includes 32GB encrypted eMMC storage (non-removable), with NAS expansion and RTSP support. Easily stream via Home Assistant, NVRs, or VLC. Works with Alexa, Google, and SmartThings for a fully integrated home.
• Flexible Mounting & Streaming Options: Supports RTSP for low-latency local streaming. Easily install it on walls, ceilings, or flat surfaces using its rotatable stand or standard ¼-inch thread.
• Built for Harsh Conditions: With an IP65 weatherproof rating, the G5 Pro performs in rain, snow, dust, or extreme cold—down to -30°C—ensuring year-round protection indoors or out.
• Customisable Outdoor Security: Two-way talk with a 100 dB speaker and sensitive microphone lets you communicate clearly with visitors or deter threats. Features like Privacy Masking, Correlated Events, and custom alerts offer advanced, tailored monitoring via the Aqara Home app.

Note:
* To use the device with a particular Matter ecosystem, a Matter Controller of this ecosystem is required.
** The 32 GB eMMC version is rated for 24–28 hours of the event-based recording.
*** Please note: only one month of Correlated Events is available for free.
**** The PoE version does not include Wi-Fi connectivity and requires an Ethernet wiring.
***** Does not support microSD storage.

Specifications

Model	CH-C03D (PoE) || CH-C07D (Wi-Fi)
Colour	White
Resolution	Quad HD 2688x1520
Image Sensor Size	1/1.8”
Field of View (FOV)	-133° (Diagonal)
Aperture	f/1.0
Power Input	USB-C: 5V 2A
PIR Detection Angle	Horizontal 100°, Vertical 65°
Spotlight	Rated Power: 3W, Beam Angle: 120°, Color Temperature: 3000K
Communication Protocols	Wi-Fi IEEE 802.11 b/g/n/ac 2.4-5 GHz, Zigbee & Thread IEEE 802.15.4, Bluetooth ( support MagicPair )
Dimensions	70.5 x 70.5 x 89 mm (2.78 x 2.78 x 3.50 in.) - stand not included
Operating Temperature	-30°C ~ +50°C (-22°F ~ 122°F)
Operating Humidity	0 ~ 95% RH, No Condensation
Free Cloud storage trial	30 days (device first time connect to the Internet)

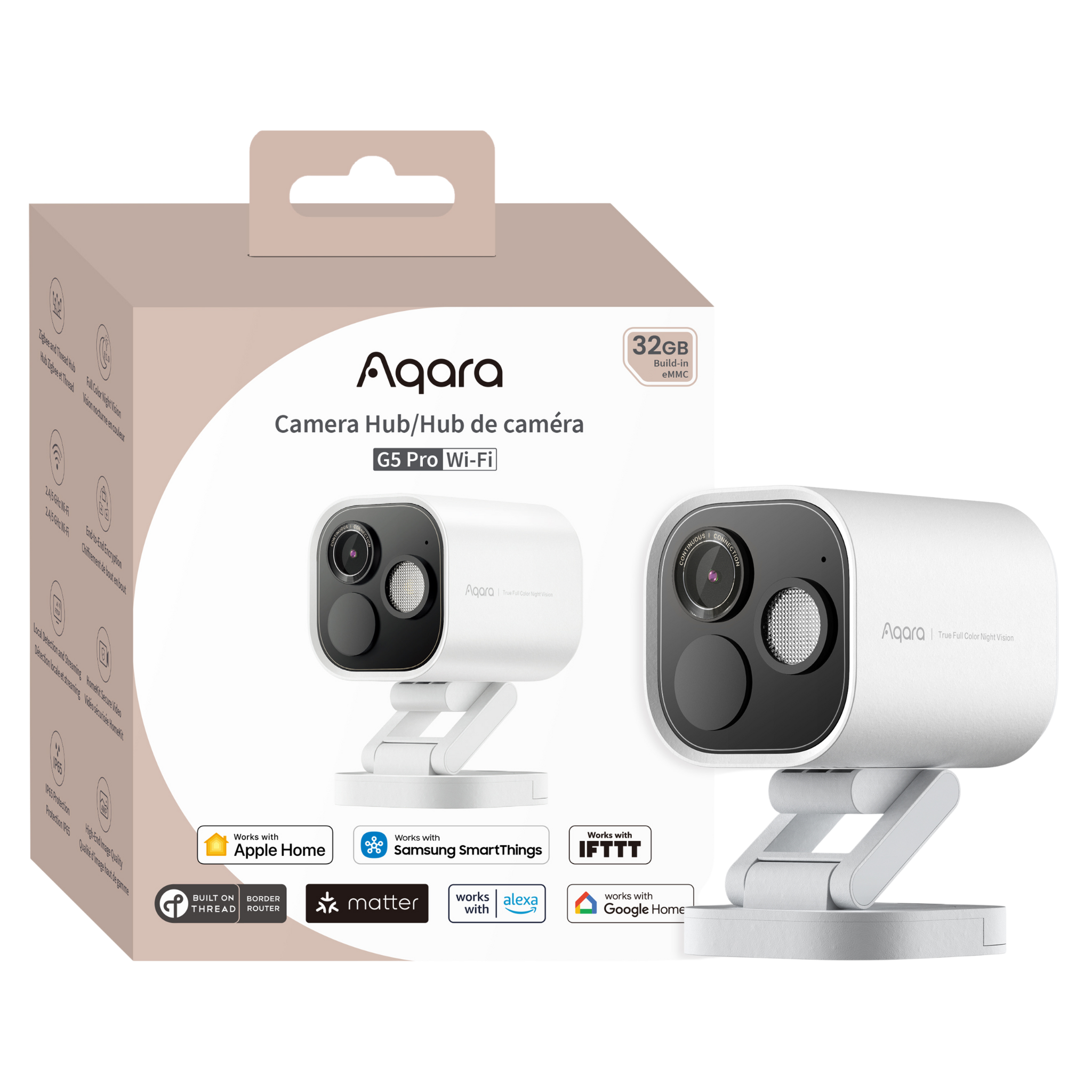

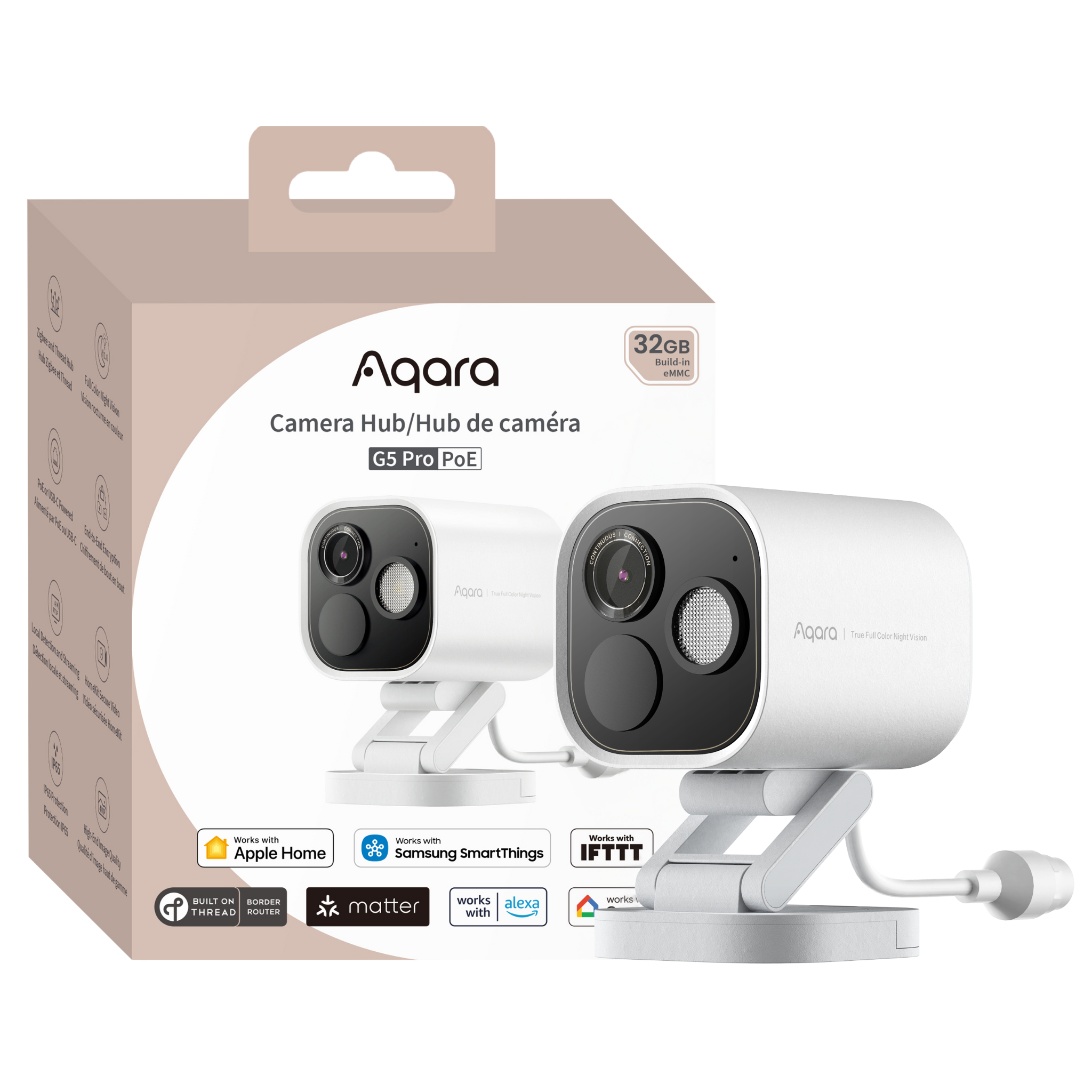

What is in the Box	- PoE Version Camera Hub G5 Pro (PoE) x1, User manual x1, Wall Screws (M3x20 mm, self-tapping) & Anchors Kit (32 mm) x1, Rear lid opener x1, Power cable x1, RJ45 Waterproof Kit x1 - Wi-Fi Version Camera Hub G5 Pro (Wi-Fi) x1, Rear lid opener x1, Wall Screws (M3x20 mm, self-tapping) & Anchors Kit (32 mm)x1, Power cable x1, User manual x1

Automations and Complementary Products

Click a product image to go to its page details

Scene: Local Security Automations with Aqara Devices

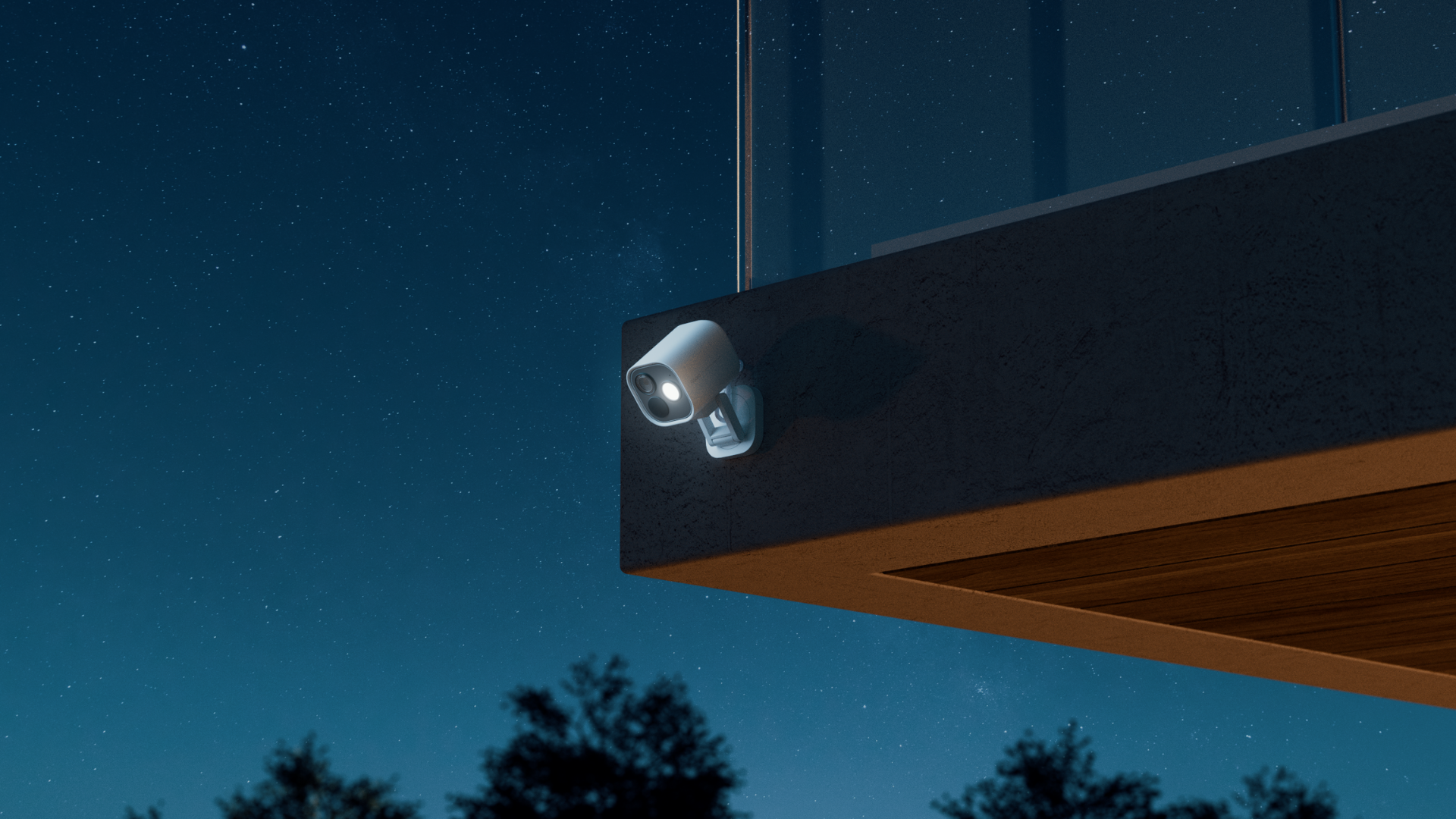

When an unknown person enters your garden, the spotlight blinks, a custom voice message plays ("Intruder detected, you're being recorded"), and indoor lights turn on. These actions help scare off intruders and give the impression that someone’s home—even when you're away.

Automation Setup

IF (Condition) - unknown person detected // THEN (Action) - Start blinking with a spotlight, trigger a custom ringtone "Intruder detected, you're being recorded", and turn on the lights at home

Scene: Only Recording When Necessary

Motion detected by a sensor triggers the G5 Pro to begin recording audio or video. This smart setup ensures the camera only records relevant events. Use filters like room, device type, tag colour, and event time to quickly review what matters.

Automation Setup

IF (Condition) - motion is detected by Sensor // THEN (Action) - Start audio recording

Scene: Creative Pet Detection for Outdoor Use

Detecting a pet at night automatically activates the garden sprinkler—perfect for gently discouraging unwanted animal visitors like the neighbour's cat.

Automation Setup

IF (Condition) - Pet is detected at night // THEN (Action) - turn on the garden sprinkler

Scene: Seamless Outdoor-Indoor comfort

When the G5 Pro detects a family member arriving home, it can automatically activate indoor lights and open/close the curtains — creating a seamless, welcoming experience that starts before they even walk through the door.

Automation Setup

IF (Condition) - G5 Pro recognizes a specific face // THEN (Action) - Turn on LED Bulb T2 and Curtain/Roller Driver

Product Support Documents

• Step by step installation instruction video:
  Installation Video - Both PoE & Wi-Fi (00:06:41)
• Product User Manual:
  User Manual - PoE (PDF) ||
  User Manual - Wi-Fi (PDF)
• Product FAQs:
  Frequently Asked Questions - PoE (PDF) ||
  Frequently Asked Questions - Wi-Fi (PDF)
