Description

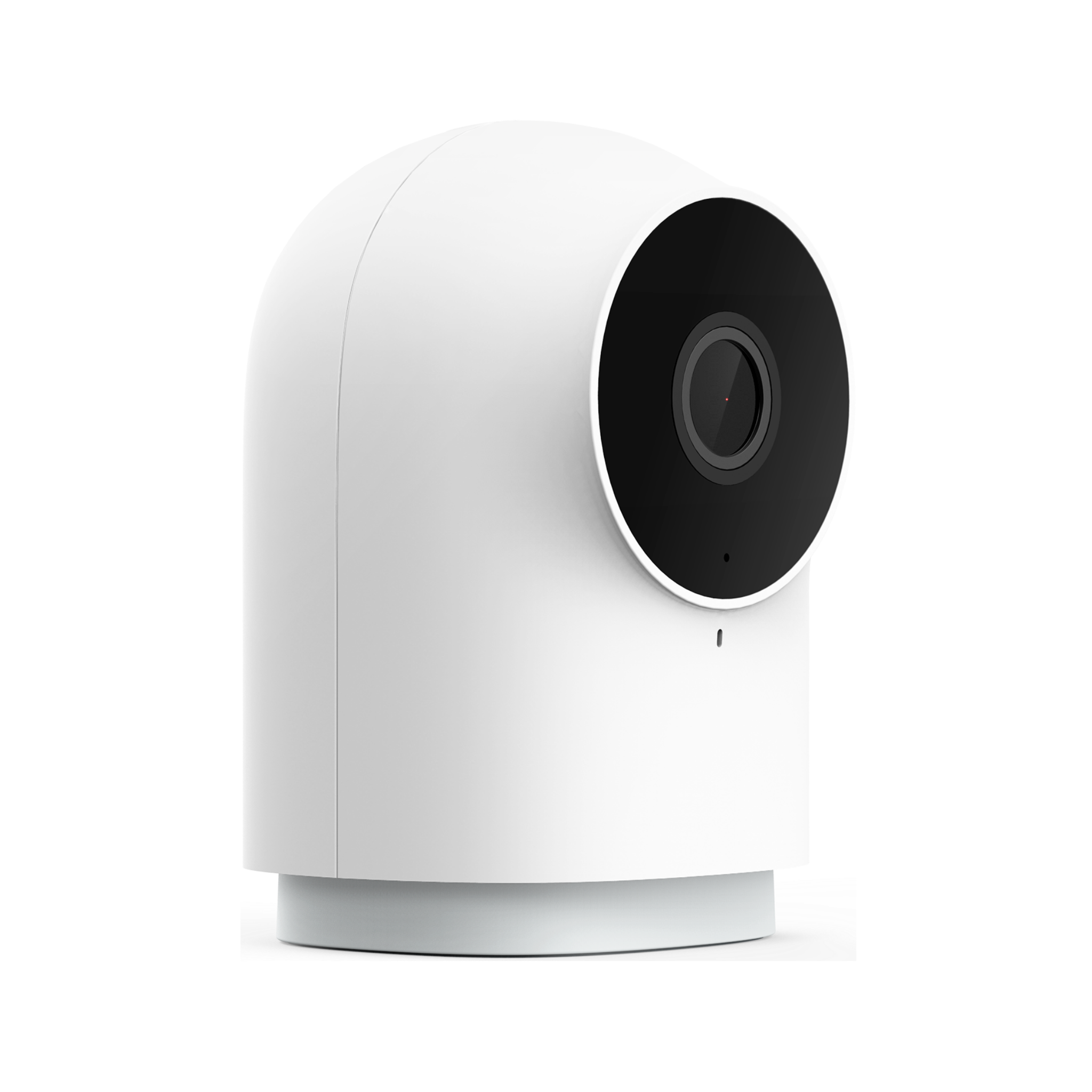

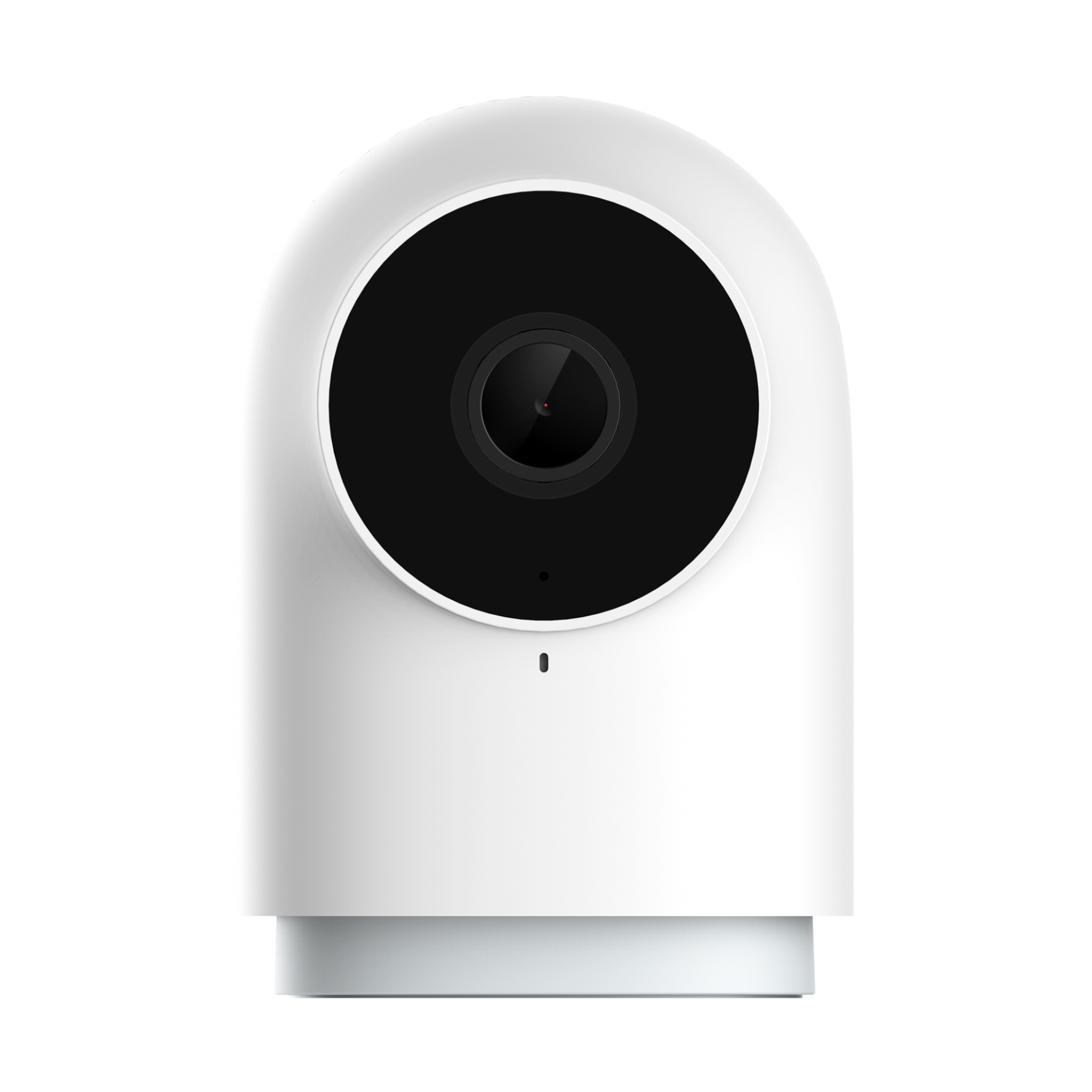

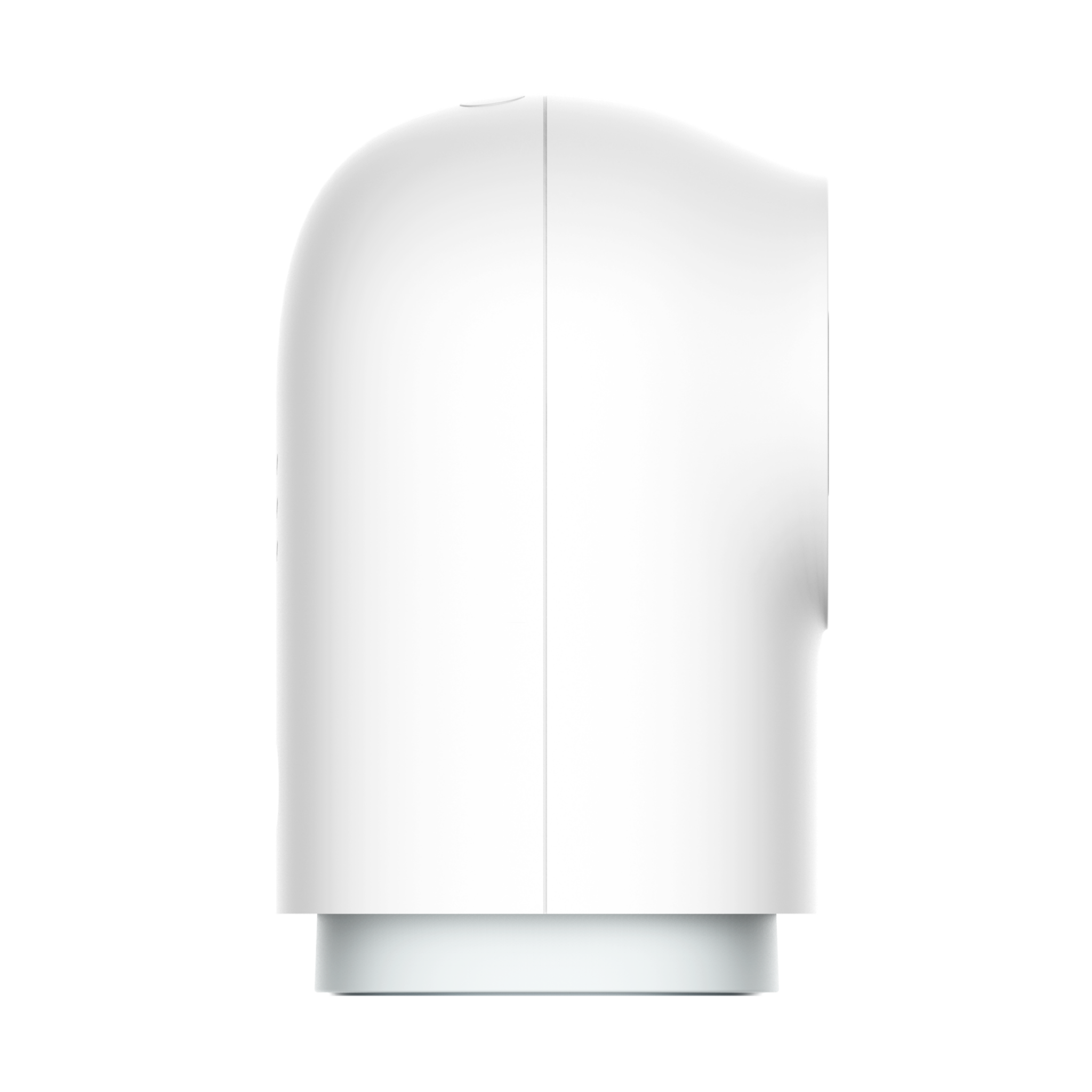

The Aqara Camera Hub G2H Pro is a compact and versatile smart camera hub designed to enhance home security and automation.

Equipped with 1080p Full HD video, a 140° wide-angle lens, and night vision, it provides clear and comprehensive monitoring day or night. Supporting Zigbee 3.0, it easily connects with other smart home devices, and its compatibility with Apple HomeKit allows seamless integration with iOS.

The G2H Pro also includes two-way audio, enabling real-time communication through the camera, and local or cloud storage options to keep recordings accessible and secure.

Key Features

• Built-in Zigbee 3.0 Hub: Connect up to 128 Aqara devices for home automation, remote access, and third-party integration.
• Enhanced HomeKit Support: Works with HomeKit Secure Video*, two-way audio, and all HomeKit Security System modes.
• Wide Compatibility: Supports HomeKit, Alexa, Google Home, and streams to smart displays.
• High-Capacity Storage: Supports microSD (up to 512 GB) and local NAS storage (Samba protocol).
• Custom Ringtones & Timelapse: Set custom ringtones and create timelapse videos.
• Alerts & Siren: Get alerts without subscription; includes a built-in siren for motion/sound detection.
• IR Night Vision: 940 nm LEDs enable clear, non-distracting night vision.
• 146° Wide-Angle & 1080p: Features a sharp 1080p sensor with a wide "fisheye" view.
• 360° Mount: Magnetic base and mounting options for flexible placement.
• Event Timeline: Marks events like door openings on the video timeline (with Aqara sensors).
• Privacy & Activity Zones: Set activity zones and mask privacy areas.
• Face & Package Recognition: Recognizes faces and packages with HomeKit Secure Video*.
• RGB LED: Features a bright RGB indicator light

Note:
* Home hub and subscription are required.

Specifications

Category	Hub
Colour	White
Model	CH-C01
Video Coding	H.264
Wireless Protocols	Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Dimensions	82.4x56.5x50.5 mm (3.24x2.33x1.99 in.)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity	15% ~ 85% RH, no condensation

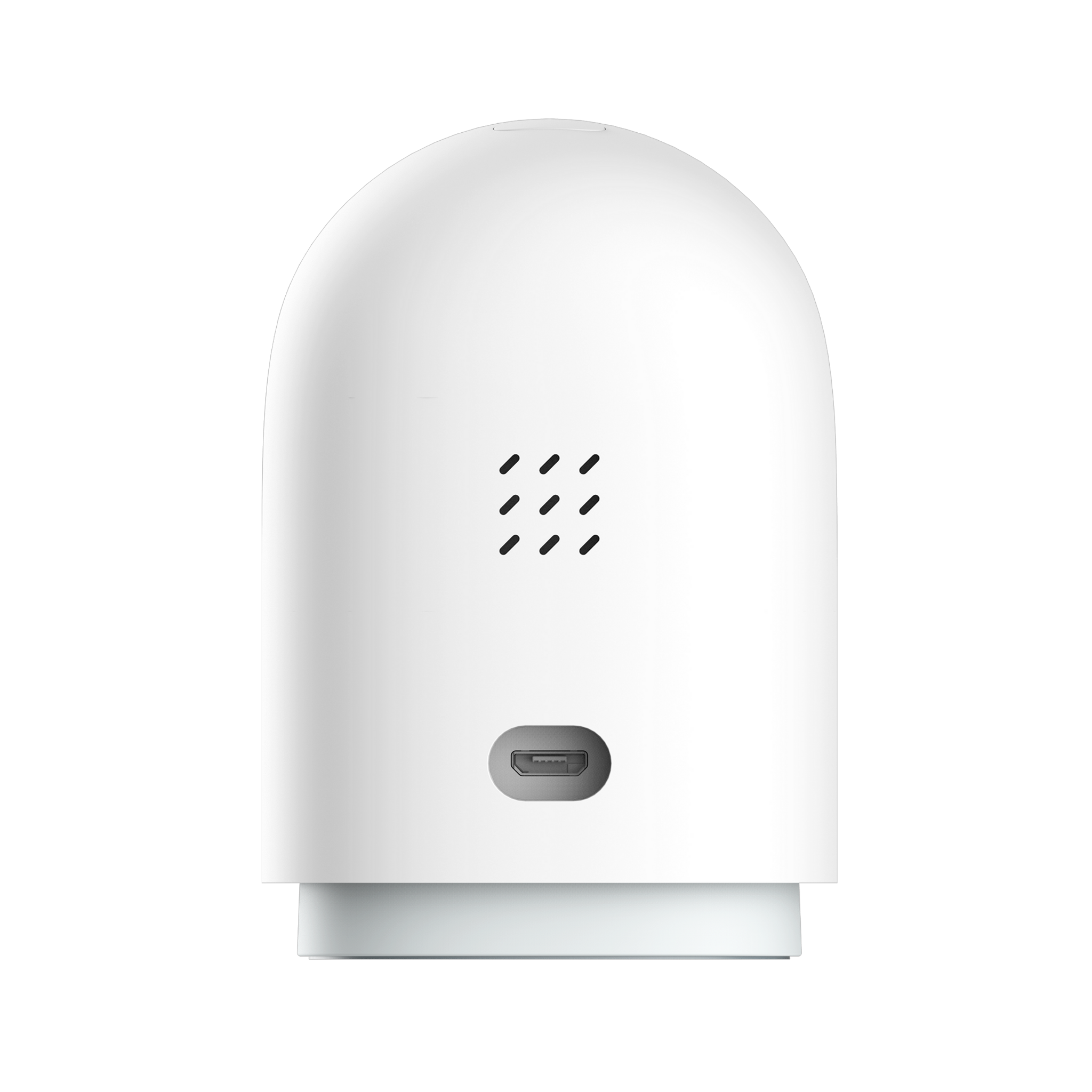

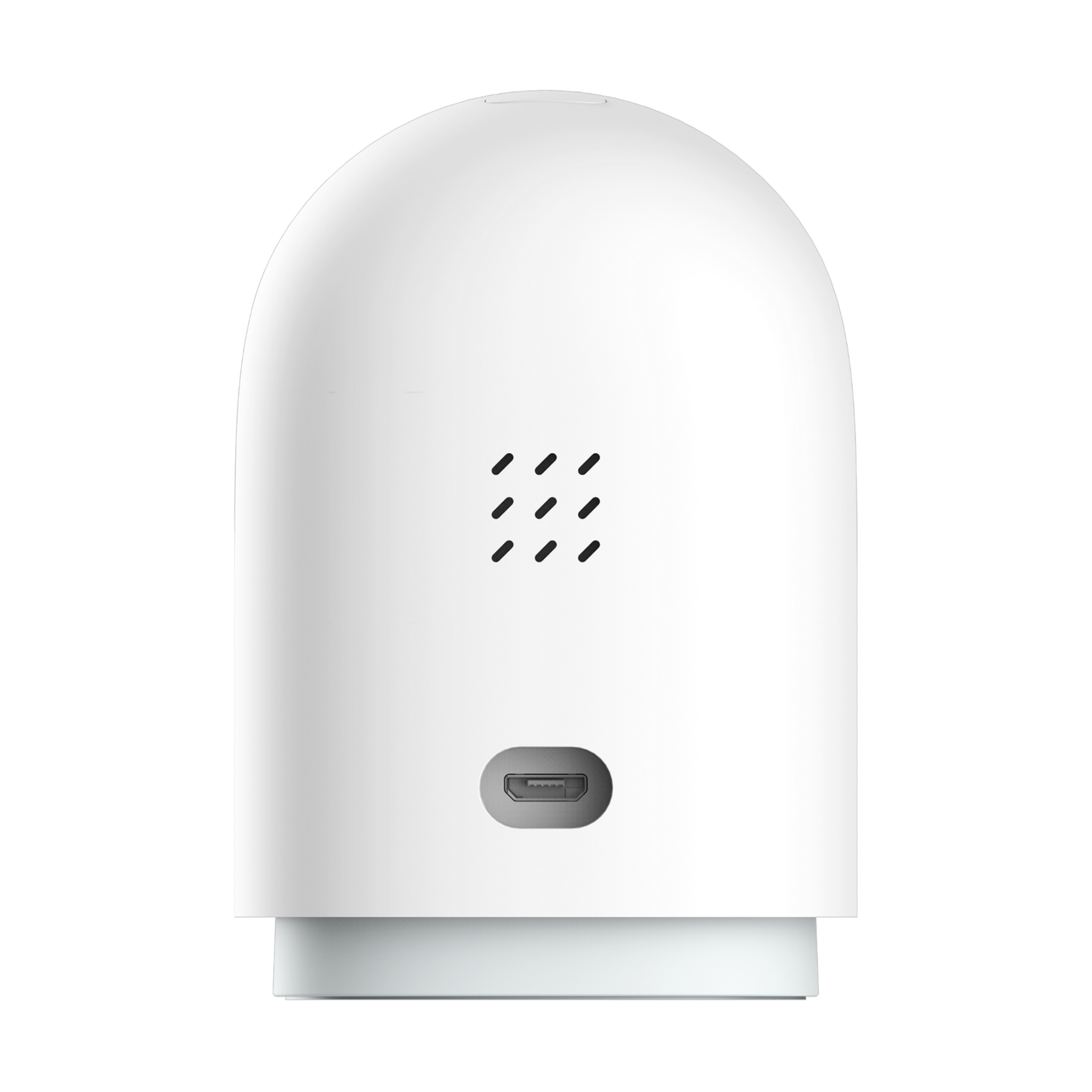

Ports	Micro USB
Input Power	5V⎓1A
Total Power Consumption	5W (MAX)
Local Storage	MicroSD card (not included). CLASS 4 or above is supported, up to 512 GB storage.
Video Resolution	2MP 1920x1080p
Viewing Angle	146° (diagonal)
Pan/Tilt Angle	N/A
What is in the Box	G2H Pro Camera Hub x1, User Manual x1, Screw x2, Metal Plate x1, Micro USB to USB-A Cable x1, Ejector Tool x1, Sticker x1

Automations and Complementary Products

Click a product image to go to its page details

Scene: Local Automations with Aqara Sensor

Connect the Camera Hub G2H Pro with Aqara sensors to automate tasks like turning on lights with motion detection or getting instant alerts for water leaks, all logged on the video timeline.

Automation Setup

IF (Condition) - Water Leak Sensor triggered // THEN (Action) - Turn on G2H Pro and send alert

Scene: Custom Ringtone Greetings

Use personalized recordings to greet family members when they unlock the door via fingerprint, with the Alert System disarming automatically.

Automation Setup

IF (Condition) - Door Lock U100 is opened with an authorized fingerprint // THEN (Action) - Camera E1 switches to privacy mode
