Description

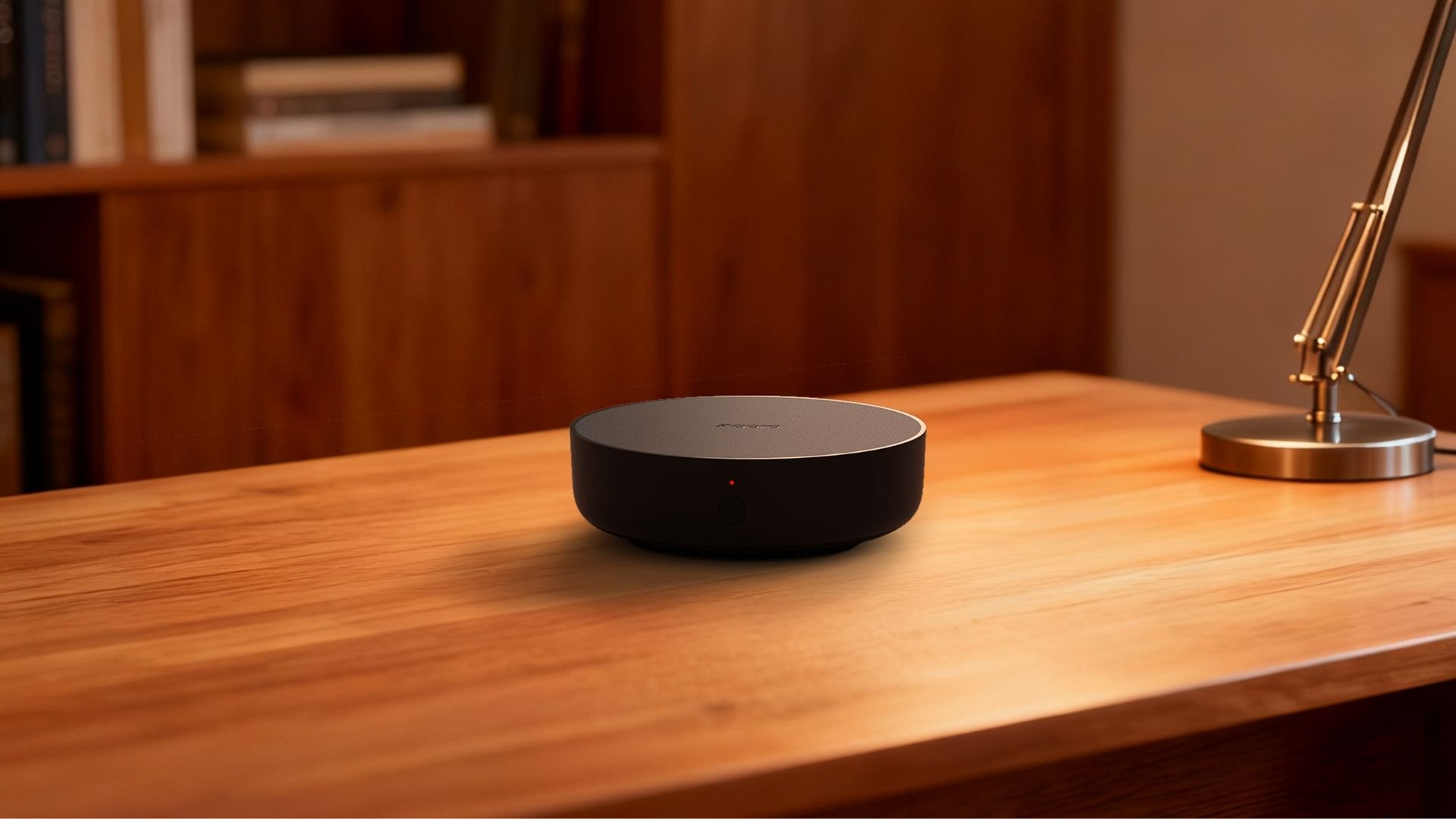

Aqara Hub M200 is an all-in-one smart hub that connects Matter and Zigbee devices, bringing Aqara and third-party products together across Apple Home, Google Home, Alexa, SmartThings, and Home Assistant.

Its built-in 360° IR blaster with learning capability lets you control TVs, air conditioners, and other IR appliances as part of your smart home. With the powerful Automations 2.0 engine, you can run advanced automations locally—even without internet—for greater privacy and reliability.

Featuring Thread Mesh networking, Wi-Fi 6, PoE support, and a built-in speaker, the M200 delivers a fast, stable, and flexible smart home experience that stays fully under your control.

Key Features

• Hub for Matter and Aqara Zigbee Devices: The Aqara Hub M200 acts as a Matter Controller, Thread Border Router, Mesh Extender, and Matter Bridge. It connects Aqara Zigbee and Matter devices to Aqara Home and major ecosystems including Apple Home, Google Home, Alexa, SmartThings, and Home Assistant. Advanced Matter Bridging enables even non-Matter Aqara devices to integrate seamlessly while retaining unique Aqara features.
• Universal IR Remote Control*: Control TVs, air conditioners**, and other IR appliances with the built-in 360° IR blaster. Advanced learning and sync features keep device status accurate in real time***. With Matter-compatible AC control, you can bring IR air conditioners into your smart ecosystem and enhance them with thermostat-like automation when paired with Aqara Climate Sensors.
• Superior Wired and Wireless Connectivity: Enjoy flexible setup with both wired**** and wireless options. Power and data can be delivered via a single PoE cable for improved reliability, while dual-band Wi-Fi 6 (2.4 GHz & 5 GHz) with WPA3 security ensures fast and stable wireless performance.
• Simple Yet Powerful Automations: Create smart actions using simple WHEN–THEN logic. Devices like lights, air conditioners, and sensors respond automatically—even offline. The upgraded Automations 2.0 engine***** delivers faster, more advanced, and highly customisable local automation.
• Built-in Speaker with Custom Audio: A powerful 90dB speaker keeps you informed with clear alerts for doorbells, alarms, and security events. You can also play custom audio messages for a more personalised smart home experience.

Note:
* For accurate status updates when using IR remotes, place the M200 near the air conditioner (wall mounting recommended).
** Only one IR-controlled air conditioner can use the AC Control function at a time.
**** Only one IR-controlled AC unit can sync when using AC Control
***** 5V⎓2A USB power adapter not included.
***** Some automations (e.g. notifications) require a cloud connection.

Specifications

Model	HM-G03D
Dimensions	100.5 × 30.75 mm (3.96 × 1.21 in.)
Wireless Protocols	Wi-Fi IEEE 802.11 a/b/g/n/ac/ax 2.4GHz/5GHz, Zigbee/Thread IEEE 802.15.4, Bluetooth
Power Input	5V 2A
PoE Input	48V⎓0.25A

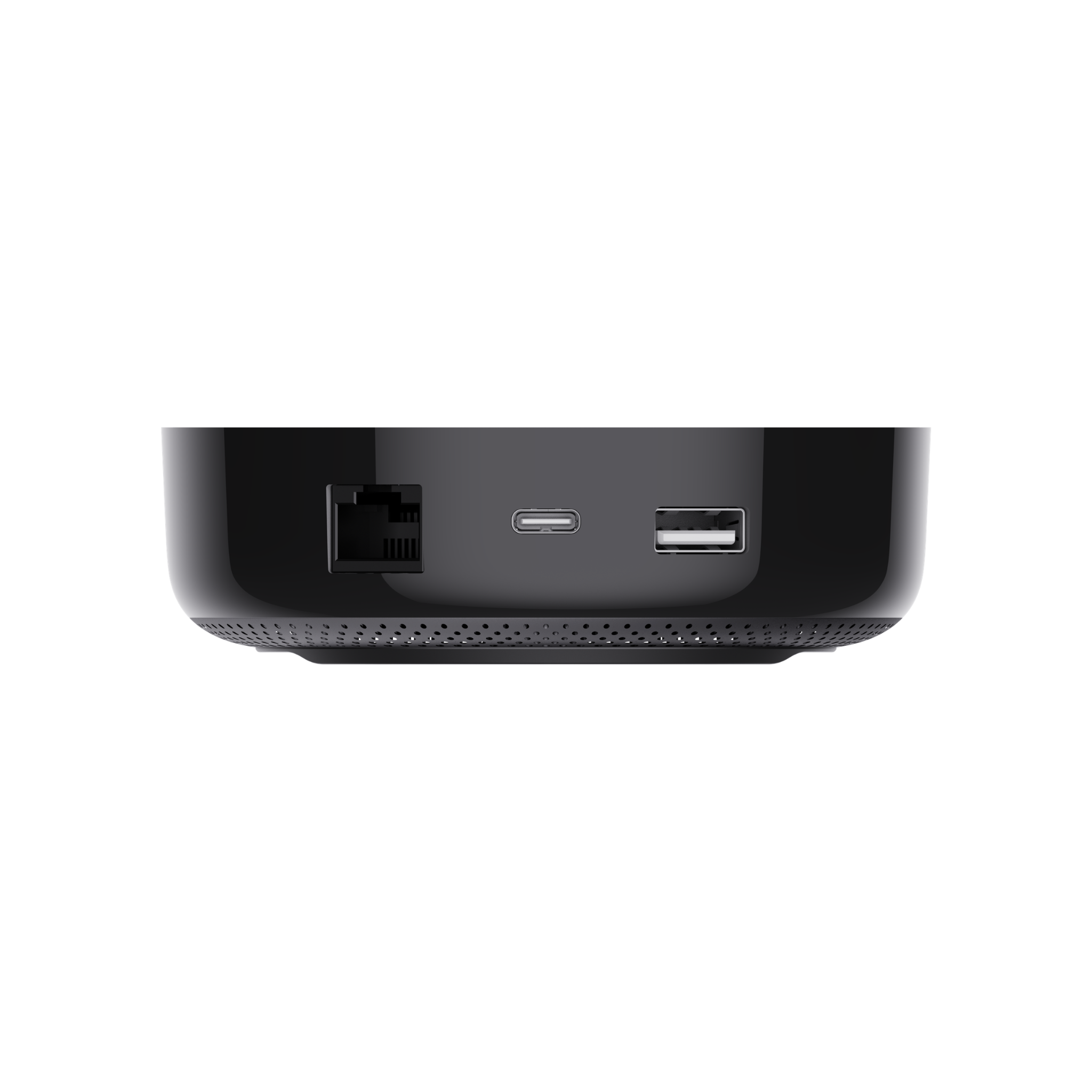

Ports	RJ45 PoE × 1, USB-A × 1, USB-C × 1
Operating Temperature	-10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity	0~95% RH, no condensation

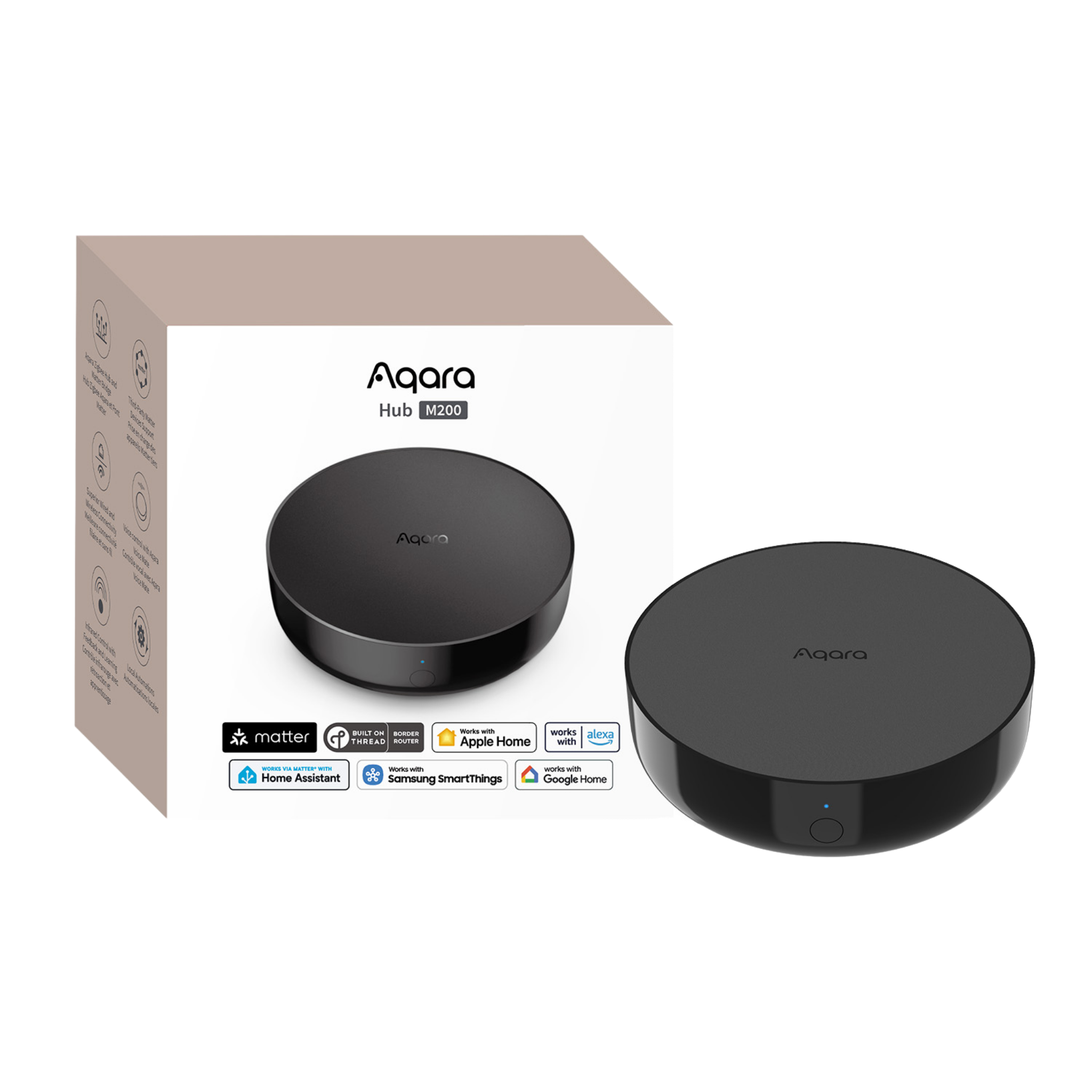

What is in the Box	Hub M200 × 1, User Manual × 2, USB-A to USB-C Cable × 1

Automations and Complementary Products

Click a product image to go to its page details

Scene: Smart Temperature Control

Stay comfortable without lifting a finger. When the room gets too warm, your air conditioner turns on automatically to restore the perfect temperature.

Automation Setup

WHEN (Condition): The current temperature rises to 29.5 °C // THEN (Action): Turn on the air conditioner

Scene: Lighting That Follows You

Experience lighting that moves with you. Lights switch on as you enter a space and turn off behind you, creating a seamless and energy-efficient atmosphere.

Automation Setup

WHEN (Condition): Presence is detected for 3 seconds // THEN (Action): Turn on the LED Strip

Scene: Instant Water Leak Alert

Protect your home from hidden damage. The moment a leak is detected, the hub sounds a loud alert so you can act immediately.

Automation Setup

WHEN (Condition): Water Leak Sensor detects leak // THEN (Action): M200 speaker will play a water leak alert sound

Scene: Automated Garden Watering

Keep your garden thriving effortlessly. Your sprinkler system activates automatically each morning, ensuring consistent and timely watering.

Automation Setup

WHEN (Condition): Time is 6:00 am Every Day // THEN (Action): Turn on the valve to the garden sprinkler system
