Smart Lock U300

The Aqara Smart Lock U300, is the first Matter-compatible lever-set, perfect for various doors. It features fingerprint access, PINs, home key, always-on mode, and more. Enhanced with AIoT (Artificial Intelligence of things) and Thread protocol for seamless smart home integration.

icon_1

Matter over Thread Support

icon_2

NFC and Apple home keys

icon_3

Ergonomic Fingerprint Reader

icon_4

Multiple Unlocking Methods

Product Info

Description

The Aqara Smart Lock U300, is the first Matter-compatible lever-set, perfect for various doors. It features fingerprint access, PINs, home key, always-on mode, and more. Enhanced with AIoT (Artificial Intelligence of things) and Thread protocol for seamless smart home integration. The U300 combines quick, secure entry with robust connectivity. Upgrade the access with U300 for advanced security and convenience!

Key Features

  • Matter over Thread Support: The first lever smart lock to support Matter and Home Key, offering seamless integration, customisation, and long battery life.
  • Matter & Home Key Support: First lever lock with Matter and Apple Home Key for seamless multi-platform integration.
  • NFC & Power-Free Unlocking: Tap to unlock with iPhone, Apple Watch, or secure NFC cards—even when out of battery.
  • Ergonomic Fingerprint Reader: Handle-integrated sensor unlocks in 0.3s with storage for up to 50 fingerprints.
  • Multiple Unlocking Options: Access via keypad, fingerprint, NFC, PIN, mechanical key, Bluetooth, and more.
  • All-Weather Durability: IPX4-rated and built to endure rain, snow, and -30°C temperatures with anti-force design.
  • Passage Mode & Voice Setup: Toggle between Auto-Lock and Passage Mode with voice-guided setup.
  • Aqara Home App Features: Control via app with automations, guest access, and offline temporary passwords.

Specifications

CategoryDoor Security
ColourSilver, Black
ModelDL-D02D
Dimensions159 × 74.5 × 76 mm (inner panel), 140 × 76 × 73.5 mm (outer panel)
Wireless ProtocolThread, Bluetooth, NFC
Operating Temperature-30°C~55°C
Operating Humidity0 ~ 93% RH, non-condensing
Required door thickness35 - 55mm
Door Margins60 - 70mm
Fire RateNo

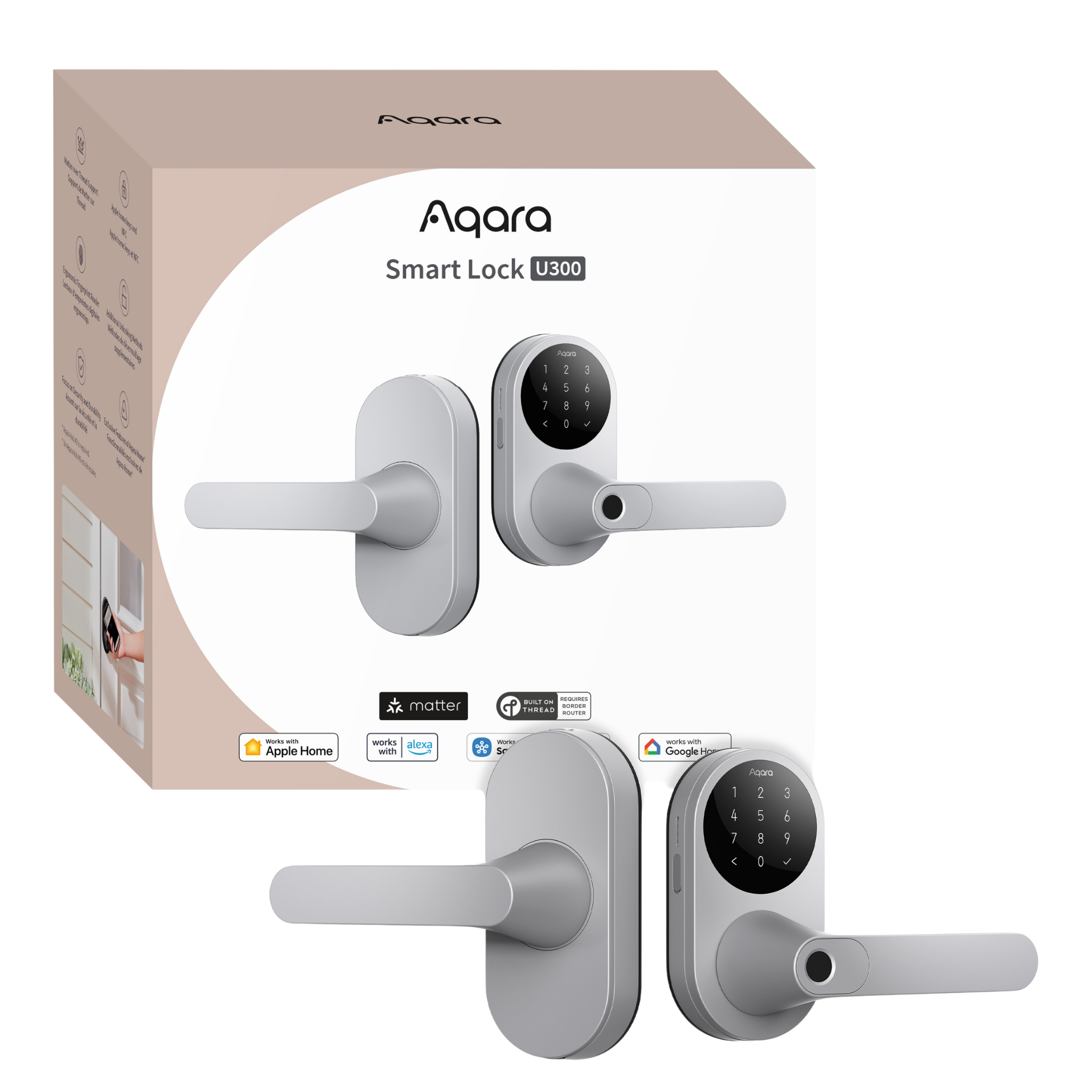

What is in the BoxSmart Lock U300 × 1, User Manual × 1, Installation Diagram × 1, AA Battery × 4, Mechanical Key × 2, Accessories Kit× 1, Backplate × 1
